NEXIII
Tool Code

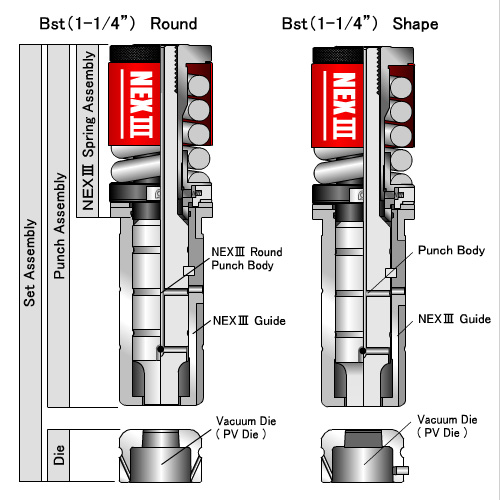

NEXIII: Bst Air-blow Tool Code Table
| Name | Punch Material | Die | Round | Shape | |||
|---|---|---|---|---|---|---|---|
| φ12.71～φ30.0mm | Inscribed 30.0mm | ||||||
| Type | Material | TML | No TML | TML | No TML | ||
| Set Assembly | APH | PV | SKH | 36HM40 | 36HP40 | 37HM40 | 37HP40 |
| SKH | 36FM40 | 36FP40 | 37FM40 | 37FP40 | |||
| Punch Assembly | APH | － | － | 11HM40 | 11HP40 | 12HM40 | 12HP40 |
| SKH | 11FM40 | 11FP40 | 12FM40 | 12FP40 | |||
| Punch Body | APH | － | － | 41HM40 | 42H040 | ||
| SKH | 41FM40 | 42F040 | |||||
Guide |
－ | － | 51FM40 | 51FP40 | 52FM40 | 52FP40 | |
| Spring assembly | － | － | 983000 | ||||
| Die | PV | SKH | 261V40 | 271V40 | |||
