EG-AR LS2 Sectionalized Tool
| Description / Specification / Profile | Effective Height |
ＶWidth | V Angle |
Shoulder R |
W Width |
Allow.Ton. | Size | FEL# |
|---|---|---|---|---|---|---|---|---|
V=7  HRC54±2 Image below: Tab Profile: 5mm/10mm |
150 | 7 | 86° | 0.5 | 10 | 600kN/m | Sect. | 887765 |
| 1.5 | 897765 | |||||||
| 90° | 0.5 | 887705 | ||||||
| 1.5 | 897705 | |||||||
| 0.5 | 13 | 1000kN/m | 887715 | |||||
| 1.5 | 897715 | |||||||
| 30° | 1.0
※1 (for 86°R0.2) |
17 | 200kN/m | 887735 | ||||
| 1.0
※2 (for 86°R0.6) |
897735 | |||||||
| 1.0
※3 (for 90°R0.2) |
887775 | |||||||
| 1.0
※4 (for 90°R0.6) |
897775 |
※a One of 15mm punches can be changed to 10mm tab profile or 5mm tab profile.

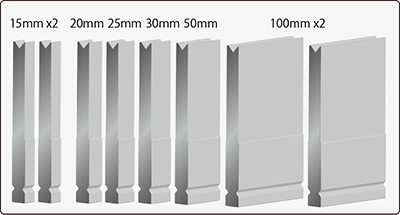

※About Sectionalized Length
Note） Please select 30°dies in accordance with punch type. Height varies by punch type.
※1 Select this die when using together with 86°R0.2 punches and 30°R0.2 Acute punches.
※2 Select this die when using together with 86°R0.6 punches and 30°R0.6 Acute punches.
※3 Select this die when using together with 90°R0.2 punches and 30°R0.2 Acute punches.
※4 Select this die when using together with 90°R0.6 punches and 30°R0.6 Aucte punches.
