Sectionalized 1V Die
SK10
- End of sales
- Replaced by = AFH Tools
※Discontinued items will be supported as special-order tool.
Please contact us with questions about the prices and the delivery time.
| Tool Number Name/Spec. |
Tool Profile | V Angle |
V Width1 |
V Width2 |
Cat.No. | Allow.Ton. | Height | Weight (kg) |
Size | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| 07200 HRC55 |
 |
88° | 10 | 15 | 072001 | 950kN/m | 60 | 5.5 | L | End of Sales |
| 072002 | 2.7 | S | ||||||||
| 072801 | 5.5 | Sect. | ||||||||
| 07300 HRC55 |
90° | 10 | 15 | 073001 | 950kN/m | 60 | 5.5 | L | ||
| 073002 | 2.7 | S | ||||||||
| 073801 | 5.5 | Sect. | ||||||||
| 07204 HRC55 |
84° | 10 | 15 | 072041 | 950kN/m | 60 | 5.5 | L | ||
| 072042 | 2.7 | S | ||||||||
| 072841 | 5.5 | Sect. | ||||||||
| 07400 HRC55 |
 |
88° | 12 | 17 | 074001 | 950kN/m | 60 | 5.9 | L | |
| 074002 | 2.9 | S | ||||||||
| 074801 | 5.9 | Sect. | ||||||||
| 07500 HRC55 |
90° | 12 | 17 | 075001 | 950kN/m | 60 | 5.9 | L | ||
| 075002 | 2.9 | S | ||||||||
| 075801 | 5.9 | Sect. | ||||||||
| 07404 HRC55 |
84° | 12 | 17 | 074041 | 950kN/m | 60 | 5.9 | L | ||
| 074042 | 2.9 | S | ||||||||
| 074841 | 5.9 | Sect. | ||||||||
| 07600 HRC55 |
 |
88° | 14 | 18 | 076001 | 950kN/m | 60 | 6.6 | L | |
| 076002 | 3.3 | S | ||||||||
| 076801 | 6.6 | Sect. | ||||||||
| 07604 HRC55 |
84° | 14 | 18 | 076041 | 950kN/m | 60 | 6.6 | L | ||
| 076042 | 3.3 | S | ||||||||
| 076841 | 6.6 | Sect. | ||||||||
| 07700 HRC55 |
 |
88° | 16 | 21 | 077001 | 950kN/m | 60 | 7.5 | L | |
| 077002 | 3.7 | S | ||||||||
| 077801 | 7.5 | Sect. | ||||||||
| 07800 HRC55 |
 |
88° | 18 | 23 | 078001 | 950kN/m | 60 | 8.3 | L | |
| 078002 | 4.1 | S | ||||||||
| 078801 | 8.3 | Sect. | ||||||||
| 07900 HRC55 |
 |
88° | 20 | 25 | 079001 | 1000kN/m | 60 | 9.1 | L | |
| 079002 | 4.5 | S | ||||||||
| 079801 | 9.1 | Sect. | ||||||||
| 08200 HRC55 |
 |
88° | 25 | 30 | 082001 | 1000kN/m | 60 | 11.0 | L | |
| 082002 | 5.5 | S | ||||||||
| 082801 | 11.0 | Sect. |

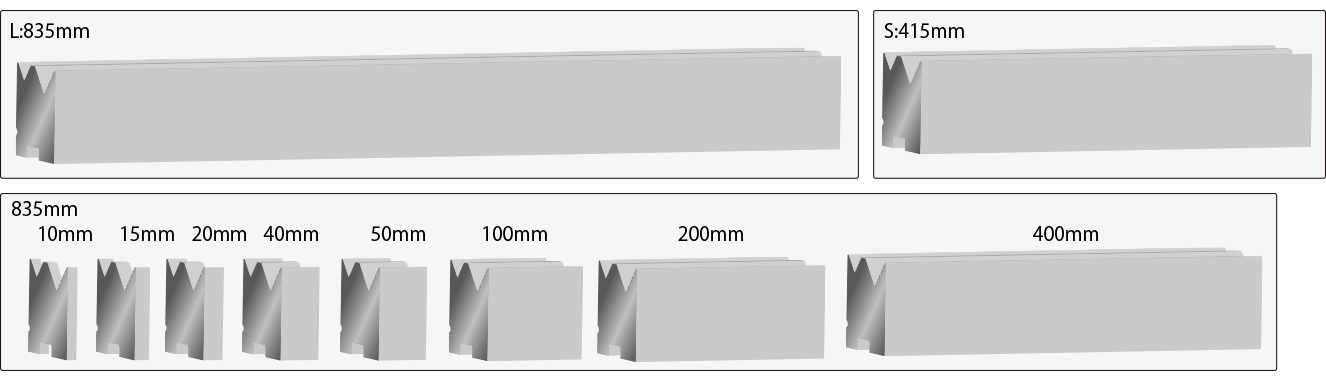

※L:835mm S:415mm
