Tool Number Name/Spec.	Tool Profile		Cat.No.	Allow.Ton.	Edge Width	HeightH	Weight (kg)	Size

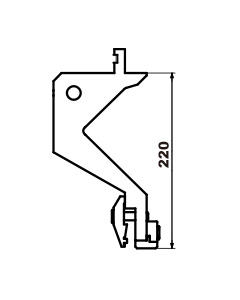

Deep Bend Punch Holder Z II Type Without Wedge	※This image is W94000		940000 (for Standard)	----	----	220	18.0	200
			W94000 (for One-Touch)				18.0	200
Deep Bend Punch Holder Z II Type With Wedge	※This Image is W94100		941000 (for Standard)	----	----	220	18.0	200	End of Sales
			W94100 (for One-Touch)				18.0	200

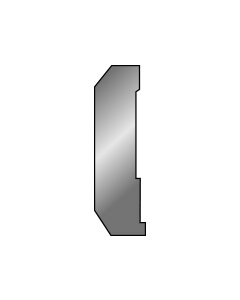

Clamp Plate for Deep Bend Punch Holder for Straight-Groove Punches (SK10)			961000	----	----	----	----	----
