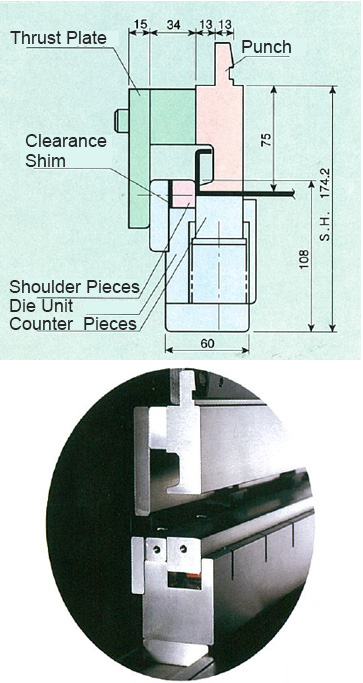

Tool Number Name/Spec.	Tool Profile		Cat.No.	Allow.Ton.	Edge Width	HeightH	Weight (kg)	Size	Price
Set (Punch+Die)			L00011	1000kN/m	----	174.2	----	L	Special
			L00022				----	S
			LBS011				----	Sect.
Punch			LP0011		----	75	----	L
			LP0022				----	S
			LBP011				----	Sect.
Die(SK10)			LD0011		----	108	----	L
			LD0022				----	S
Hinged Punch 1set (Left+Right) : Total 200mm			L00031	----	----	----	----	----

※Sectionalized Length (15,20,25,30,50,100(Right Ear),100(Left Ear),200 Total540mm)
※L:1000mm,S:500mm
