※Discontinued items will be supported as special-order tool.
Please contact us with questions about the prices and the delivery time.

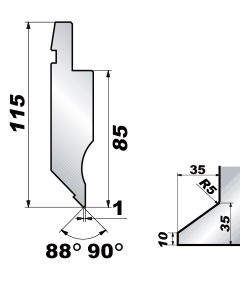

Tool Number Name/Spec.	Tool Profile	V Angle	Edge R	Cat.No.	Allow.Ton.	Edge Width	Weight (kg)	Size
0059 HRC47±2		88°	R0.2	005921	800kN/m	1mm	12.8	L
				005922			6.4	S
			R0.6	005961			12.8	L
				005962			6.4	S
0099 (No.0059Sect.) HRC47±2			R0.2	009921	400kN/m		11.6	Sect.
			R0.6	009961
0069 HRC47±2		90°	R0.2	006921	800kN/m	1mm	12.8	L	End of Sales
				006922			6.4	S
0079 (No.0069Sect.) HRC47±2				007921	400kN/m		11.6	Sect.
