※Discontinued items will be supported as special-order tool.
Please contact us with questions about the prices and the delivery time.

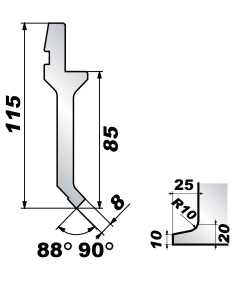

Tool Number Name/Spec.	Tool Profile	V Angle	Edge R	Cat.No.	Allow.Ton.	Edge Width	Weight (kg)	Size
010 HRC47±2		88°	R0.2	010021	300kN/m	8mm	9.0	L
				010022			4.5	S
			R0.6	010061			9.0	L
				010062			4.5	S
0108 (No.010Sect.) HRC47±2			R0.2	010821	150kN/m		9.0	Sect.
			R0.6	010861
11 HRC47±2		90°	R0.2	011021	300kN/m	8mm	9.0	L	End of Sales
				011022			4.5	S
0118 (No.11Sect.) HRC47±2				011821	150kN/m		9.0	Sect.
