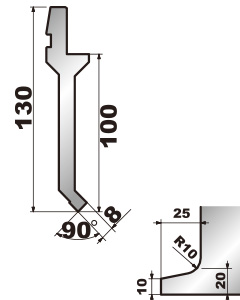

| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|---|
| 203 HRC47±2 |
 |
90° | R0.2 | 203001 | 300kN/m | 8mm | 10.0 | L |
| 203002 | 5.0 | S | ||||||
| 20380 (No.203Sect.) HRC47±2 |
203801 | 150kN/m | 9.0 | Sect. |
※L:835mm S:415mm
