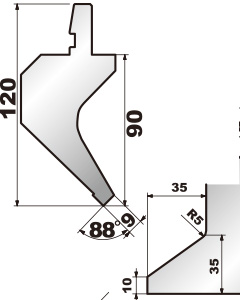

Gooseneck Punch
SK10,11
| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size | |
|---|---|---|---|---|---|---|---|---|---|
| 452 HRC47±2 |
 |
88° | R0.2 | 452021 | 700kN/m | 9mm | 19.8 | L | |
| 452022 | 9.8 | S | |||||||
| R0.6 | 452061 | 19.8 | L | ||||||
| 452062 | 9.8 | S | |||||||
| R0.8 | 452081 | 19.8 | L | End of Sales | |||||
| 452082 | 9.8 | S | |||||||
| R1.5 | 452151 | 19.8 | L | ||||||
| 452152 | 9.8 | S | |||||||
| R3.0 | 452301 | 19.8 | L | ||||||
| 452302 | 9.8 | S | |||||||
| 150 (No.452Sect.) HRC47±2 |
R0.2 | 150021 | 450kN/m | 17.3 | Sect. | ||||
| R0.6 | 150061 | ||||||||
| R0.8 | 150081 | End of Sales | |||||||
| R1.5 | 150151 | ||||||||
| R3.0 | 150301 |
※L:835mm S:415mm * Blue codes are items excluded from inventory.
