Gooseneck Punch
SK10,11
※Discontinued items will be supported as special-order tool.
Please contact us with questions about the prices and the delivery time.
- End of sales
- Replaced by = AFH Tools

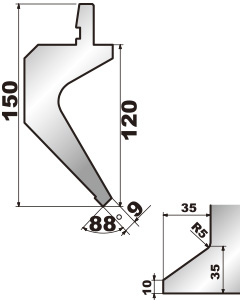

| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size | Price |
|---|---|---|---|---|---|---|---|---|---|
| 47 HRC47±2 |
 |
88° | R0.2 | 047021 | 500kN/m | 9mm | 29.0 | L | End of Sales |
| 047022 | 14.4 | S | |||||||
| R0.6 | 047061 | 29.0 | L | ||||||
| 047062 | 14.4 | S | |||||||
| R0.8 | 047081 | 29.0 | L | ||||||
| 047082 | 14.4 | S | |||||||
| R1.5 | 047151 | 29.0 | L | ||||||
| 047152 | 14.4 | S | |||||||
| R3.0 | 047301 | 29.0 | L | ||||||
| 047302 | 14.4 | S | |||||||
| 52 (No.47Sect.) HRC47±2 |
R0.2 | 052021 | 450kN/m | 29.0 | Sect. | ||||
| R0.6 | 052061 | ||||||||
| R0.8 | 052081 | ||||||||
| R1.5 | 052151 | ||||||||
| R3.0 | 052301 |
※L:835mm S:415mm
