Middle Height Punch
SK11
- End of sales
- Replaced by = AFH Tools
※Discontinued items will be supported as special-order tool.
Please contact us with questions about the prices and the delivery time.

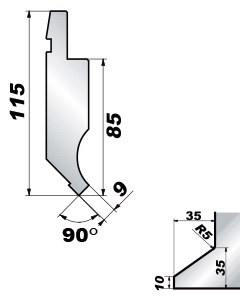

| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size | Price |
|---|---|---|---|---|---|---|---|---|---|
| 6 HRC47±2 |
 |
90° | R0.2 | 006021 | 1000kN/m | 9mm | 13.5 | L | End of Sales |
| 006022 | 6.7 | S | |||||||
| R0.8 | 006081 | 13.5 | L | ||||||
| 006082 | 6.7 | S | |||||||
| R1.5 | 006151 | 13.5 | L | ||||||
| 006152 | 6.7 | S | |||||||
| R3.0 | 006301 | 13.5 | L | ||||||
| 006302 | 6.7 | S | |||||||
| 007 (No.6Sect.) HRC47±2 |
R0.2 | 007021 | 450kN/m | 12.3 | Sect. | ||||
| R0.8 | 007081 | ||||||||
| R1.5 | 007151 | ||||||||
| R3.0 | 007301 |
※L:835mm S:415mm
