Heavy Gauge AX1V DieHG/EG/HDS/HD Recommendation
- Heavy Gauge Punch
- Heavy Gauge Die
* L：835mm M：510mm SS：200mm Ears：200mm (Right 100 Left 100)
Sect.：370mm (10×2,15,20,25,40,50,100×2)

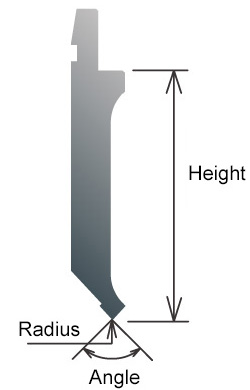

| Profile | Angle | Radius | CATNo. | Allowable Tonnage | Edge Width | Weight (kg) |
Size |
 Hardness HRC47±2 |

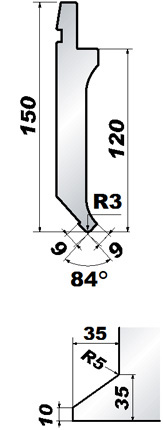

84゜ | R3.0 | A06031 | 1000kN/m | 9mm | 17.1 | Ｌ |
| A06531 | 10.5 | M | |||||
| A06732 | 4.1 | SS | |||||
| A06831 | 7.6 | Sect. | |||||
| A06931 | 450kN/m | 2.8 | Ears |
* L：835mm M：510mm SS：200mm
Sect.：365mm (20,25,30,40,50,100,100)

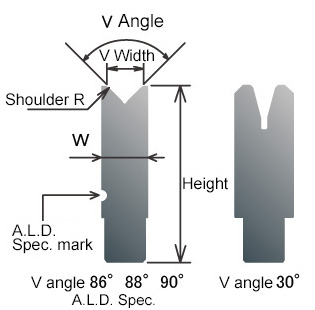

| Profile | Angle | V Width | W | CATNo. | Allowable Tonnage | Height | Weight (kg) |
Size |
 Hardness HRC65 |

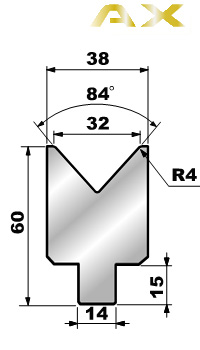

84° | 32 | 38 | 087041 | 1000kN/m | 60 | 10.6 | L |
| 087541 | 6.5 | M | ||||||
| 087742 | 2.5 | SS | ||||||
| 087841 | 4.6 | Sect. | ||||||
 Hardness HRC65 |

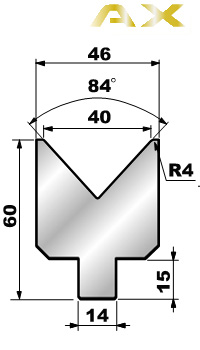

40 | 46 | 088041 | 11.8 | L | |||
| 088541 | 7.2 | M | ||||||
| 088742 | 2.8 | SS | ||||||
| 088841 | 5.1 | Sect. |
