Hydaraulic 1V Die Holder
| Items | Spec. Hydaraulic Unit | ||
|---|---|---|---|
| Die Clamp method | Hydaraulic Driven Type | ||
| Applicable Die | Amada Standard Sectionalized 1V Die and Die with 14mm width | ||
| Holder Length |
Machine Table Length |
L1250 | 1250mm × 1 = 1250mm |
| L2000 | 2000mm × 1 = 2000mm | ||
| L2500 | 1250mm × 2 = 2500mm | ||
| L3000 | 1500mm × 2 = 3000mm | ||
| L4000 | 2000mm × 2 = 4000mm | ||
| Holder Weight |
Machine Table Length |
L1250 | 26.0kg × 1 = 26.0kg |
| L2000 | 41.0kg × 1 = 41.0kg | ||
| L2500 | 26.0kg × 2 = 52.0kg | ||
| L3000 | 31.0kg × 2 = 62.0kg | ||
| L4000 | 41.0kg × 2 = 82.0kg | ||

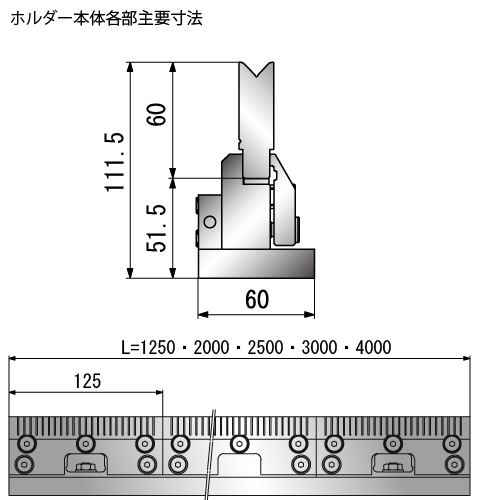

| Holder Height | H=51.5mm (From The Upper Surface of The Table） | ||
| Tool Clamp Force * | 6.7kN (670kgf) (Outlet Pressure 24.5MPa/h) | ||
| Hydaraulic Working Pressure | 24.5MPa (250kgf/cm2） | ||
| Tool Allowance | 1000 kN/m | ||
| Holder Length: Machine TableLength 1.2m～2.0m (Standard) |
1 set: 1pcs |
|---|---|
| Holder Length: 2.5m more | 1 set: 2pcs |
*: Clamping force is theoretical calculated figure per clamp plate 125mm long.
