IW45 Rotary Triple Holder 145/245

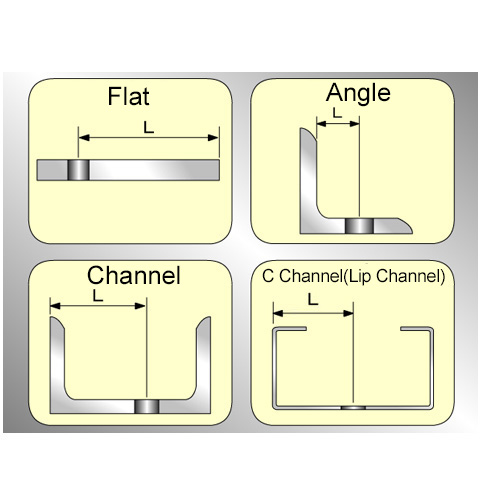

Application Range
| Rotary Triple Holder 145 |
Rotary Triple Holder 245 |
|
|---|---|---|
| Flat Bar size | L size Max * | |
| 9 or less | 50 | 50 |
| Angle size | L size Min | |
| 40×40×5t or less | 14 | 18 |
| 50×50×6t or less | 14 | 18 |
| 60×60×5t or less | 16 | 22 |
| 75×75×9t or less | 16 | 22 |
| Channel size | L size | |
| 75×40×5 | 26～46 | 30～42 |
| 100×50×5 | 50～70 | 50～65 |
| C-Channel size (Lip Channel) |
L size | |
| 60×30×10 | 25～35 | 30 |
| 75×35×15 | 30～45 | 34～41 |
| 75×45×15 | 30～45 | 34～41 |
| 90×45×20 | 40～55 | 39～51 |
| 100×50×20 | 50～63 | 50～58 |
*In case of AP145 – AP445, max. L size is 85mm.
