Quick Table

Specification & Code

Item	Quantity
Quantity	Ast 36pcs + Bst 14pcs Total 50pcs

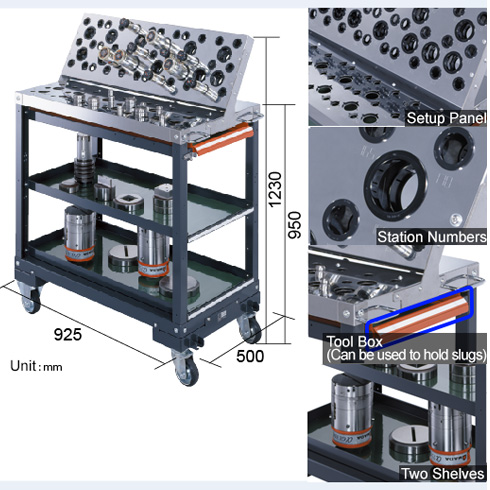

Dimension mm	W925×D500×H1230
Loading Capacity	MAX 200 kg
Item Code	959000

**Tool setup panel has 58 station turret numbers for Ast 1/2” and Bst 11/4” only

Cautions:
1. Setup panel may not accept some type of special forming die
2. When moving this table somewhere, move slowly
3. Do not put any unstable thing on the table when moving

*Picture used is an example; no tooling is included with Quick Table.

*Jig for tooling replacement is not available.
*2 of 4 casters have locks. Please use the locking casters when the table is not being moved

	Ast 1/2” and Bst 11/4” station numbers of the 58 station turret are marked on the panel. Numbers are arranged same as the turret, so it helps tooling setup operation. *Insert part made of plastic.
	Die panel has a fixture groove of die key. It can be used as positioning guideline for key direction.
