NCT Tool Optimum Height Table

  • Size
  • 1/2"
  • 1 1/4"
  • 2"
  • 3 1/2"
  • 4 1/2"
NCT Tool Optimum Height Table
NCT Tool Optimum Height Table
NCT Tool Optimum Height Table
NCT Tool Optimum Height Table
NCT Tool Optimum Height Table
NCT Tool Optimum Height Table

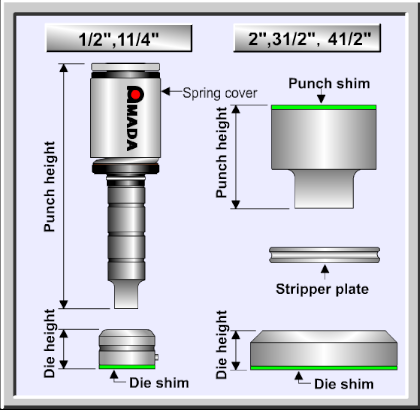

Set the optimum tool height.Punch height miss-adjustmentleads to slug pulling or friction welding and die height miss-adjustment influences to making and deformation on the component.
Unit: mm

Size Punch Height Die Height
Long Short

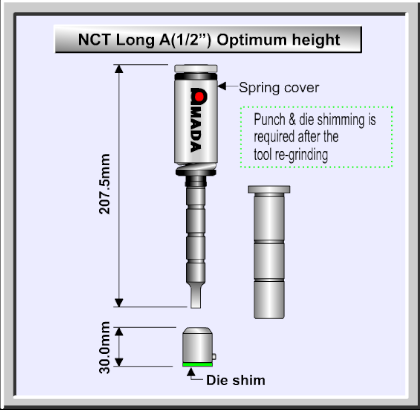

Ast(1/2") 207.5 139.7 30.0

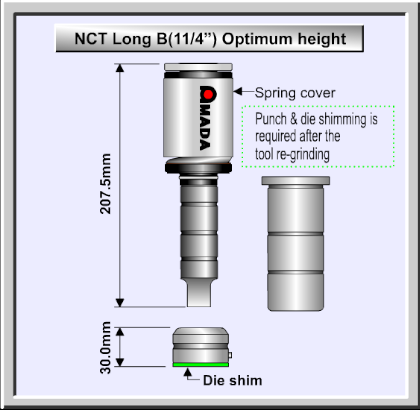

Bst(11/4") 207.5 139.7 30.0

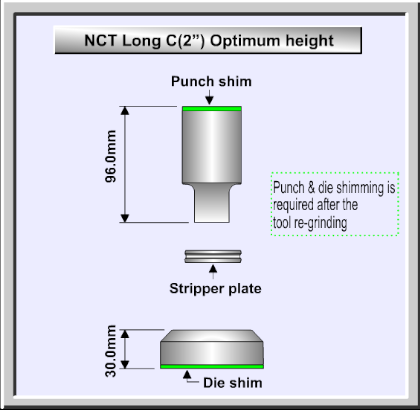

Cst(2") 96.0 61.5 30.0

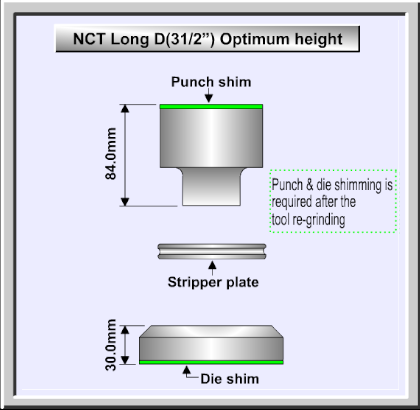

Dst(31/2") 84.0 70.5 30.0

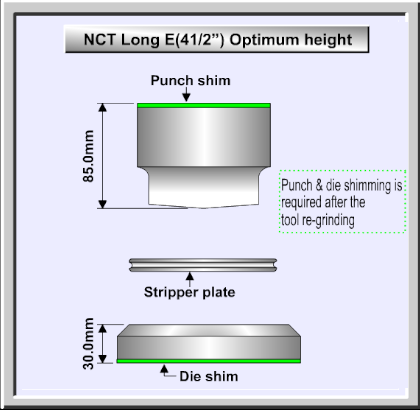

Est(41/2") 85.0 - 30.0

Above table shows optimum height for the tool. The height differs for special forming or specific tool.
