Reversible Acute 2V Dies
| Specifications |
|---|
| CATNo. | No.33706 | No.339 | |||
|---|---|---|---|---|---|
| V width mm | V=6 | V=10 | V=8 | V=12 | |
| V Angle | 30° | ||||
| Shoulder R | R1.5 | R2.0 | R1.0 | R1.0 | |

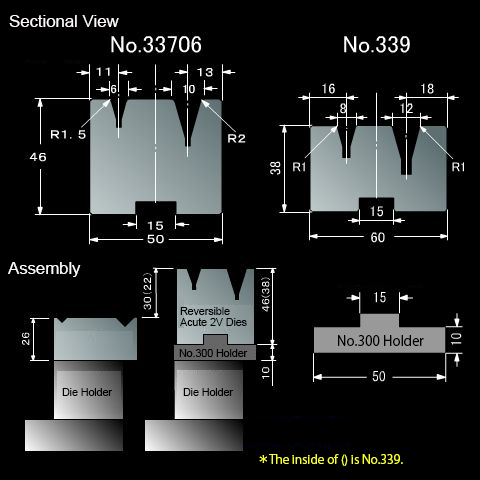

| Profile mm | H46 x W50 | H38 x W60 | |||
| Sectionalized Tool Size mm |
L size（835）・S size（415）・ （10,15,20,40,50,100,200,400 total 835） |
||||
| Allowable Tonnage | 260 kN/m | 400 kN/m | |||
| Thickness mm |
SPCC | 1.0 | 1.6 | 1.4 | 2.0 |
| SUS・AL | 1.0 | 1.5 | 1.5 | 2.0 | |
