IW45 Rotary Triple Holder 145/245
Specification
| Holder Type | Rotary Triple Holder 145 |
Rotary Triple Holder 245 |
|---|---|---|
| Machine | IW-45 III (II) | |
| Punch & Die | (S) AP-145 Standard x 3 Station |
(S) AP-245 Standard x 3 Station |

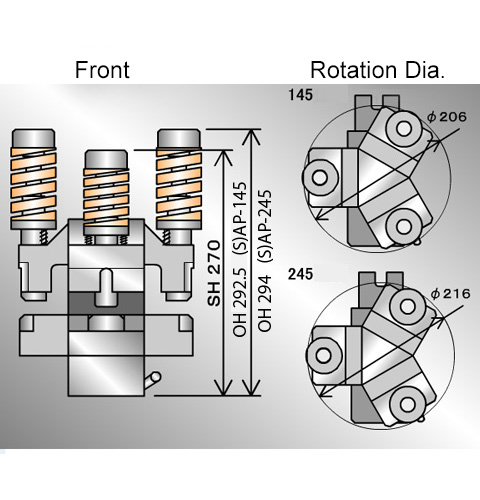

| Shut Height | 270mm | |
| Open Height | 292.5mm | 294mm |
| Die Height | 89mm | |
| Max.Material Thickness | 9mm(Equiv. to SS) | |
| Max. Proccessing Dia. | φ14 | φ20 |
| Max. Depth | 55mm | |
| Outer Rotation Dia. | φ206mm | φ216mm |
| Material Shape | Flat, Angle, Channel, C-Channel (Lip Channel) | |
| Applicable Station | Station No.1 No.2 No.3 No.4 No.5 | |
