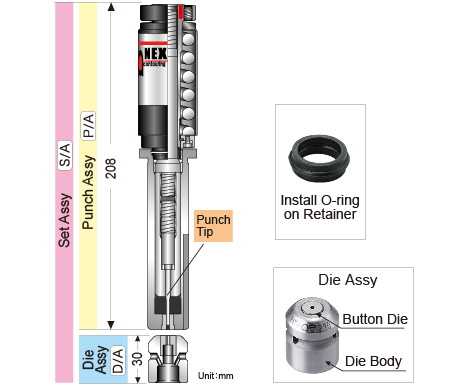

Contouring Tool
Code
| Material | Item | Punch Material | Die Material | CATNo. |
| Contouring Tool Kit | - | 37E030 | ||
| Ticn Coating | Set Assy | Ticn Coating |
SKH | 35X220 |
| Punch Assy | - | 15X220 | ||
| Punch Tip | 45X220 | |||
| Die Assy (Die Tip Type) | - | SKH | 251020 | |
| Button Die | 251220 | |||
| Carbide | Set Assy | Carbide | Carbide | 35K220 |
| Punch Assy | - | 15K220 | ||
| Punch Tip | 45K220 | |||
| Die Assy (Die Tip Type) | - | Carbide | 25K020 | |
| Button Die | 25K220 | |||
| Die Body | 251320 | |||
Contouring Tool Kit (Contents)
| Item | pcs | Item | pcs |
| Punch Assy | 1 | CL 0.15 Die Assy（SKH） | 1 |
| Carbide Punch Tip（φ2） |
2 | CL 0.2 Die Assy（SKH） | 1 |
| Ticn Coating Punch Tip（φ2） |
3 | CL 0.3 Die Assy（Carbide） | 1 |
| Spare Guide | 1 | - | - |
