Deburring Tool
Code

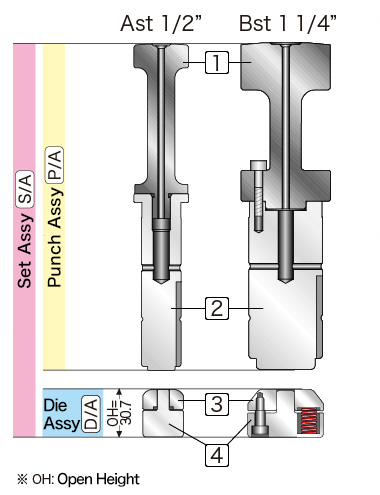

| No. | Product | Size / Profile | ||||||
|---|---|---|---|---|---|---|---|---|
| Ast 1/2" | Bst 1 1/4" | |||||||
| φ2 | SQ5 | SQ6 | SQ10 | RC 5×20 |
RC 6×20 |
RC 10×20 |
||
| SetAssy SK01 CATNo. |
311120 | 321120 | 321130 | 321140 | 321150 | 321160 | 321170 | |
| Punch Assy SK01 CATNo. |
111120 | 121130 | ||||||
| 1 | PDC-compatible Punch Head Driver | Order Item | ||||||
| 2 | Punch Body | Order Item | ||||||
| Die Assy SK01 CATNo. |
211120 | 221120 | 221130 | 221140 | 221150 | 221160 | 221170 | |
| 3 | Ejecter Plate | Order Item | ||||||
| 4 | Die Block | Order Item | ||||||
*SQ: Square RE: Rectangle
*In case of Cst/Dst/Est size or use in mechanical punch press machines, please order it as special tooling.
