Wing Bend WB120A/230A/350A Reference Bending Data 2

Caution

Caution for Tool Registration on NC Control

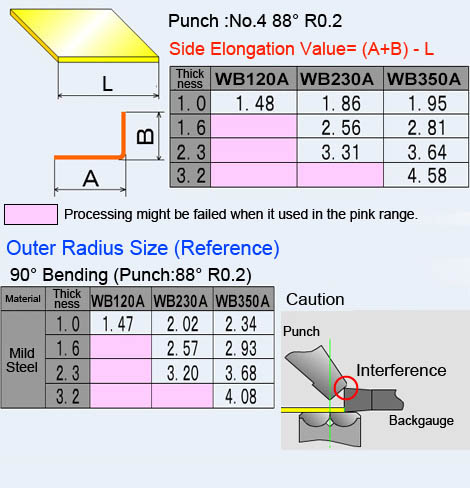

Please select “direct mode” on NC for Wing Bend. (Do not use with auto calculation function [“angle input mode”].) A bending style of Wing Bend is different from V Die, so elongation value and depth compensation value are also different. Be sure to perform a bending test and check the values and size.



Caution for Short Flange Length

Please pay attention to the conflict between punch edge and the back gauge when processing short flange with Wing Bend. Wing pieces rotates and swings up, so be sure to use pull-back function when back gauge is placed on Wing Bend or when short flange bending is performed.
