Modular Die

Image	Profile	V Width(mm)	V Angle	Shoulder R	Effective Height(mm)	Allow.Ton. (kN/m)

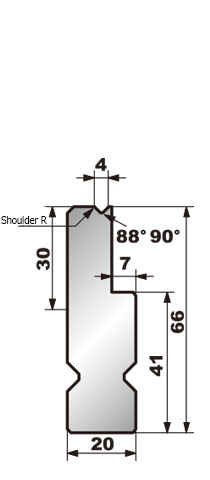

MT-704	MT704	V4	88°,90°	1	30	400
MT-704	MT704	V4	88°,90°	1	80	400

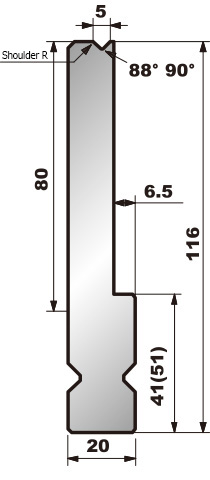

MT-604	MT604	V4	88°,90°	0.4	30	400

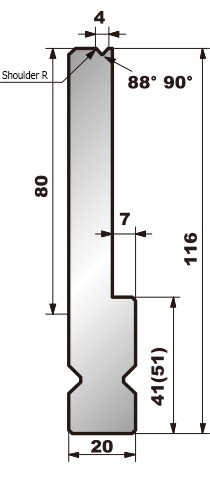

MT-604	MT604	V4	88°,90°	0.4	80	400

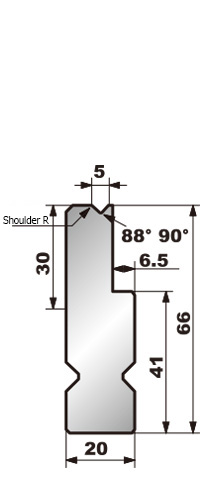

MT-705	MT705	V5	88°,90°	1	30	500
MT-705	MT705	V5	88°,90°	1	80	500
MT-605	MT605	V5	88°,90°	0.4	30	500
MT-605	MT605	V5	88°,90°	0.4	80	500

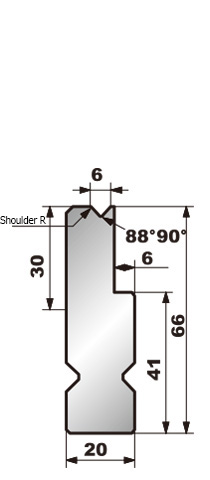

MT-706	MT706	V6	88°,90°	1.5	30	550
MT-706	MT706	V6	88°,90°	1.5	80	550

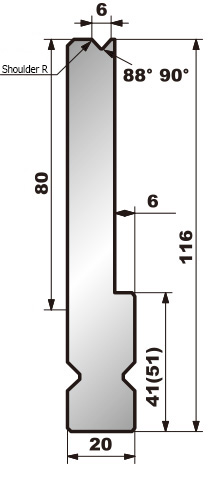

MT-606	MT606	V6	88°,90°	0.4	30	550
MT-606	MT606	V6	88°,90°	0.4	80	550

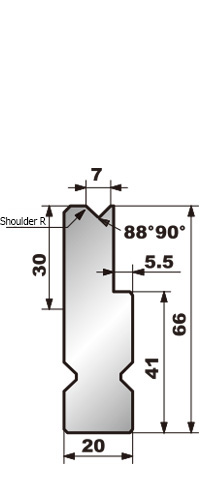

MT-707	MT707	V7	88°,90°	1.5	30	600
MT-707	MT707	V7	88°,90°	1.5	80	600

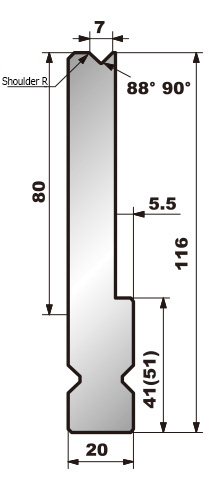

MT-607	MT607	V7	88°,90°	0.5	30	600
MT-607	MT607	V7	88°,90°	0.5	80	600

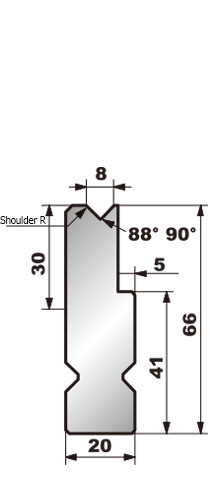

MT-708	MT708	V8	88°,90°	1.5	30	650
MT-708	MT708	V8	88°,90°	1.5	80	650

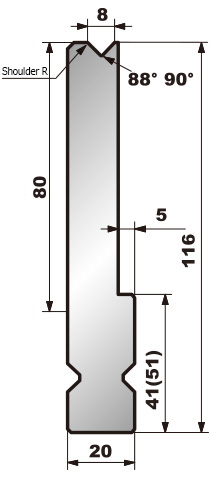

MT-608	MT608	V8	88°,90°	0.5	30	650
MT-608	MT608	V8	88°,90°	0.5	80	650

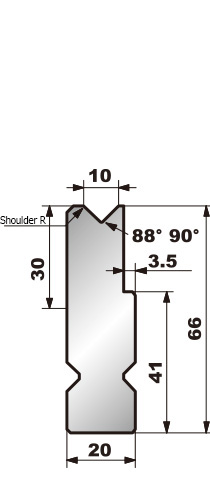

MT-710	MT710	V10	88°,90°	2	30	900
MT-710	MT710	V10	88°,90°	2	80	900

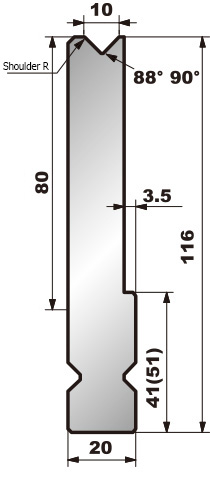

MT-610	MT610	V10	88°,90°	0.6	30	900
MT-610	MT610	V10	88°,90°	0.6	80	900

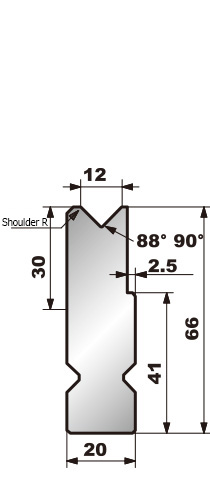

MT-712	MT712	V12	88°,90°	2.5	30	1000
MT-712	MT712	V12	88°,90°	2.5	80	1000

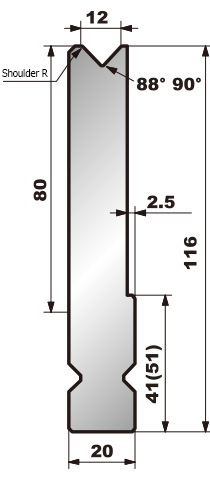

MT-612	MT612	V12	88°,90°	0.8	30	1000
MT-612	MT612	V12	88°,90°	0.8	80	1000

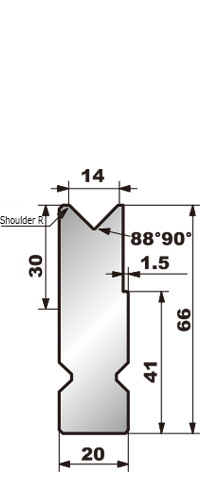

MT-714	MT714	V14	88°,90°	2.5	30	1000
MT-714	MT714	V14	88°,90°	2.5	80	1000
MT-614	MT614	V14	88°,90°	0.8	30	1000

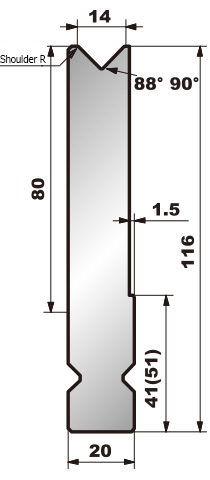

MT-614	MT614	V14	88°,90°	0.8	80	1000

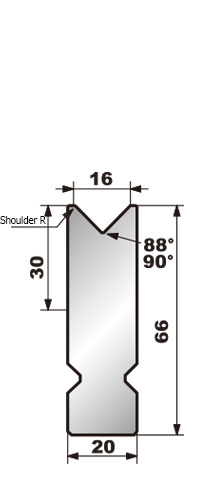

MT-716	MT716	V16	88°,90°	2.5	30	1000
MT-716	MT716	V16	88°,90°	2.5	80	1000

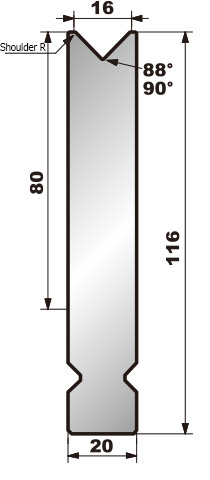

MT-616	MT616	V16	88°,90°	0.8	30	1000
MT-616	MT616	V16	88°,90°	0.8	80	1000

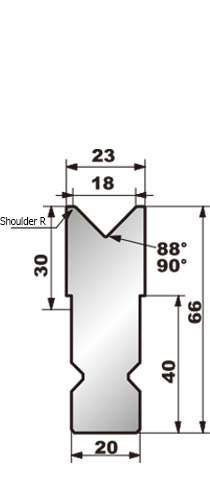

MT-718	MT718	V18	88°,90°	2.5	30	1000
MT-718	MT718	V18	88°,90°	2.5	80	1000

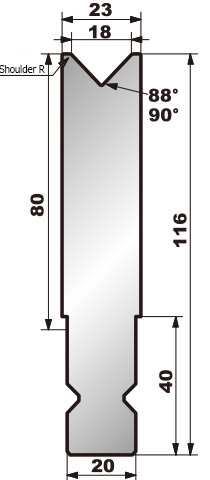

MT-618	MT618	V18	88°,90°	1	30	1000
MT-618	MT618	V18	88°,90°	1	80	1000

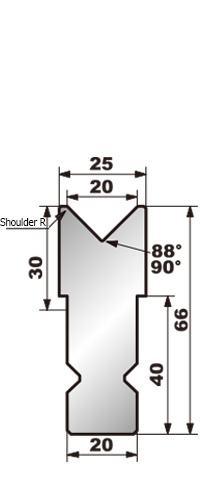

MT-720	MT720	V20	88°,90°	3	30	1000
MT-720	MT720	V20	88°,90°	3	80	1000

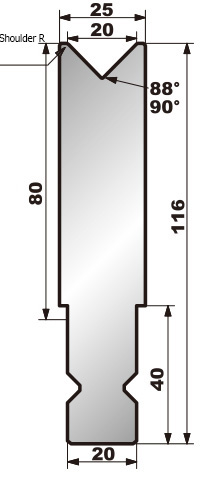

MT-620	MT620	V20	88°,90°	1	30	1000
MT-620	MT620	V20	88°,90°	1	80	1000

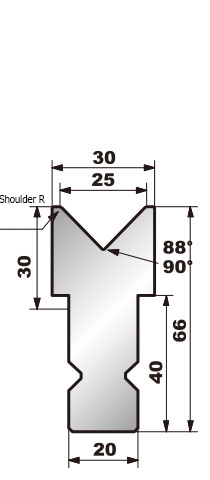

MT-725	MT725	V25	88°,90°	3	30	1000
MT-725	MT725	V25	88°,90°	3	80	1000

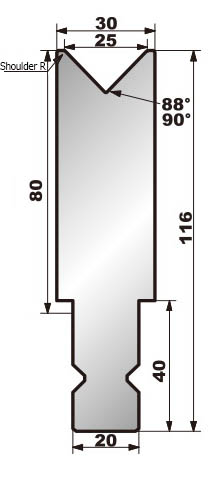

MT-625	MT625	V25	88°,90°	1	30	1000
MT-625	MT625	V25	88°,90°	1	80	1000

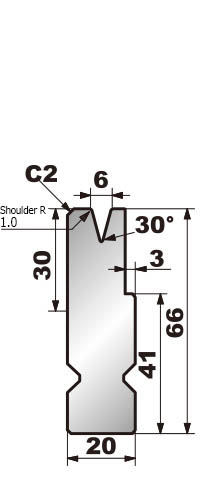

MT-506	MT506	V6	88°,90°	1	30	180

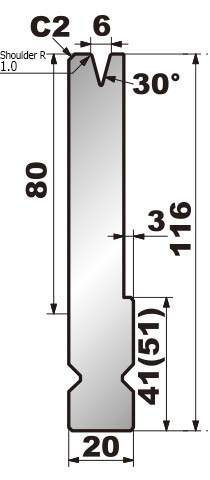

MT-506	MT506	V6	88°,90°	1	80	180

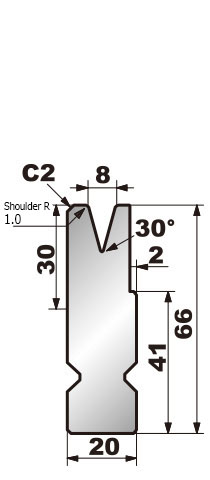

MT-508	MT508	V8	88°,90°	1	30	200

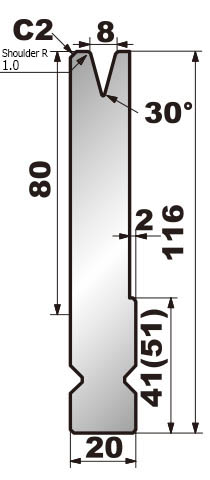

MT-508	MT508	V8	88°,90°	1	80	200

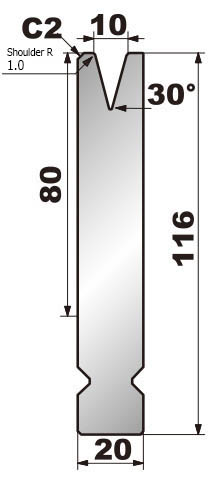

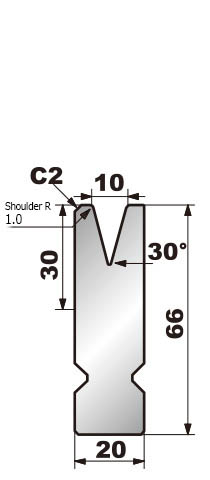

MT-510	MT510	V10	88°,90°	1	30	260
MT-510	MT510	V10	88°,90°	1	80	260

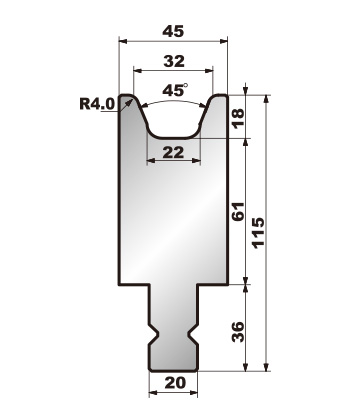

R Bend Die	R Bend Die	V32	45°		80	350

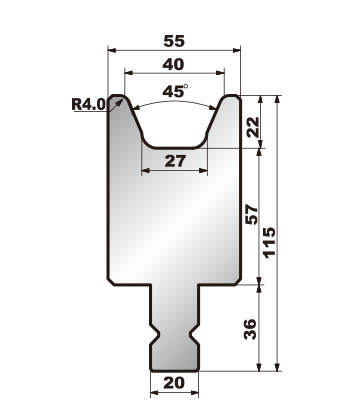

R Bend Die	R Bend Die	V40	45°		80	400

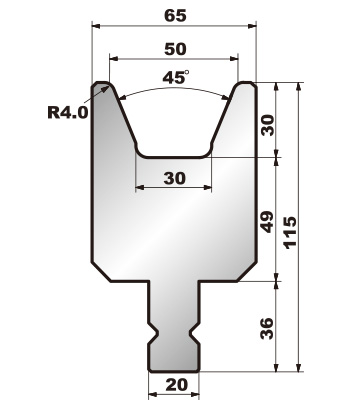

R Bend Die	R Bend Die	V50	45°		80	400

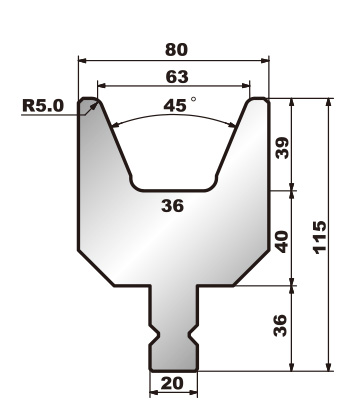

R Bend Die	R Bend Die	V63	45°		80	600

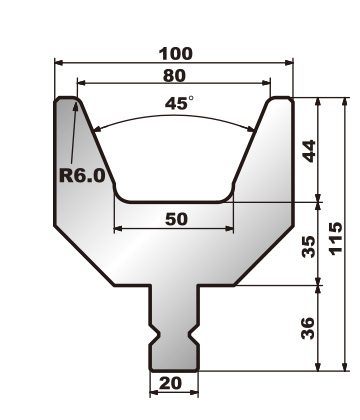

R Bend Die	R Bend Die	V80	45°		80	700

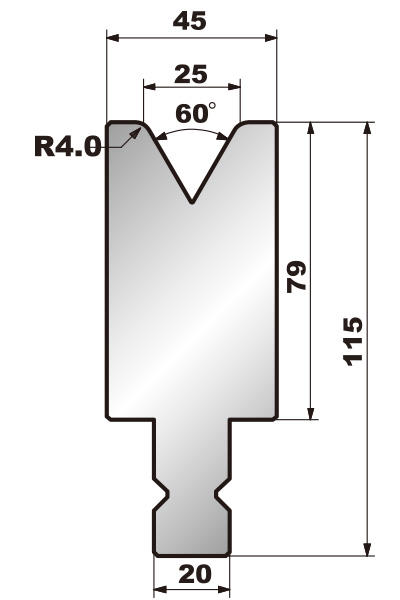

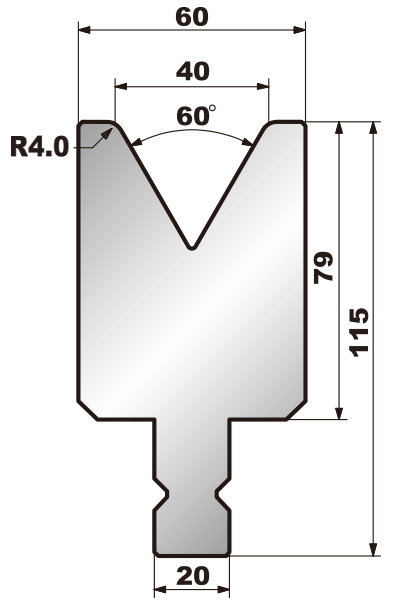

Heavy Duty Die	Heavy Duty Die	V25	60°		80	1000

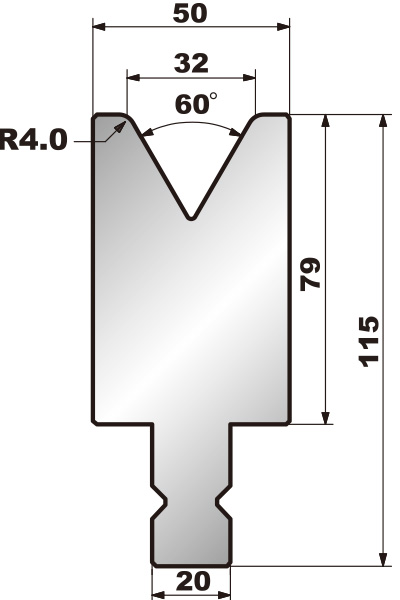

Heavy Duty Die	Heavy Duty Die	V32	60°		80	1000
Heavy Duty Die	Heavy Duty Die	V40	60°		80	1000

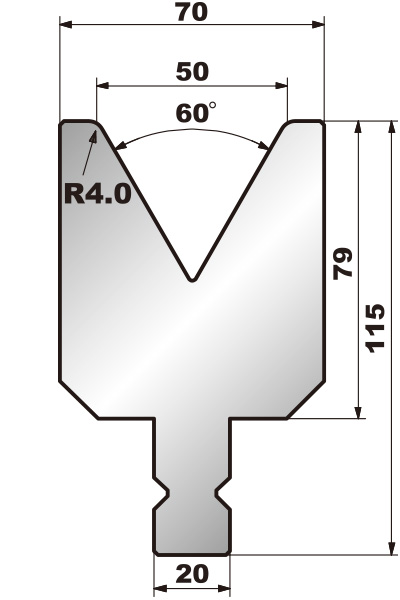

Heavy Duty Die	Heavy Duty Die	V50	60°		80	1000
