Modular Tool Others
| Image | Group | Type | V Width |
V Angle |
Tip Width(mm) | Effective Height(mm) | Allow.Ton. (kN/m) |
|---|---|---|---|---|---|---|---|

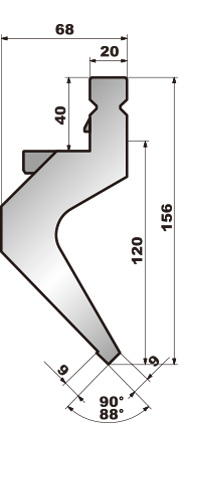

MT-47 |
Punch | Special Gooseneck |
88°,90° | 9 | 120 | 500 | |

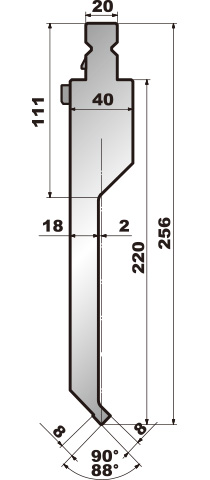

| High-Height Punch Special Sash  |
Punch | Special Sash |
88°,90° | 18 | 220 | 500(300) | |

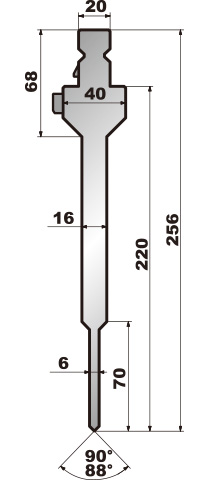

| High-Height Punch Special Straight  |
Punch | Special Straight | 88°,90° | 6 | 220 | 500(190) | |

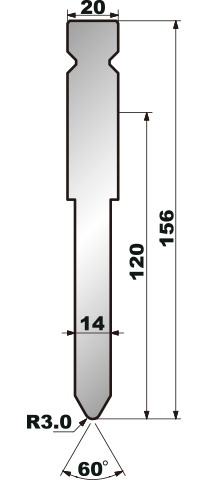

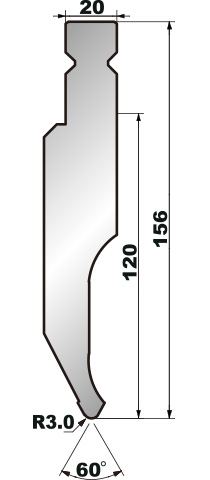

Heavy Duty Punch |
Punch | Heavy Duty Standard | 60° | 14 | 120 | 1000 | |
| Heavy Duty Punch  |
Punch | Heavy Duty Straight | 60° | 14 | 120 | 1000 | |

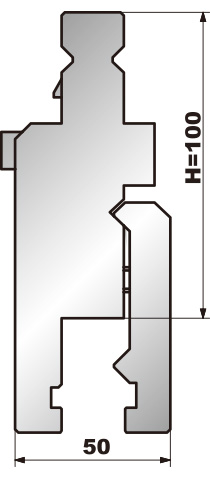

| Height-Up Attachment  |
Holder | Height-Up | 100 | ||||
|

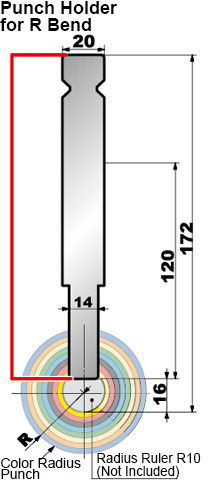

Punch Holder for R Bend  |
Holder | R Bend | 120 | ||||

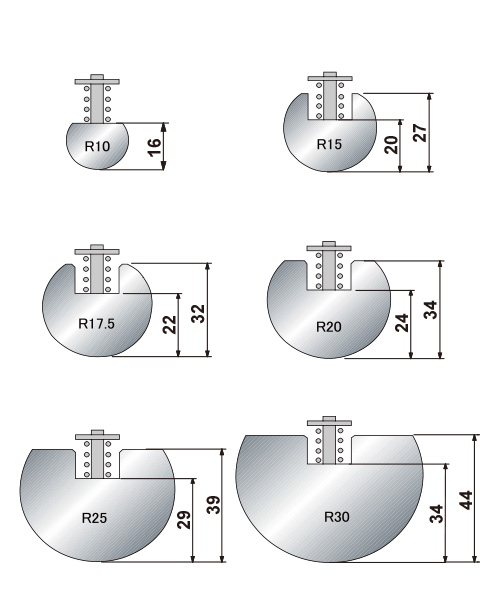

| Color radius Set  |
Punch | R Bend | R+6mm | ||||
Radius Rulers |
Punch | R Bend | |||||
| Hemming Tooling  |
Punch/Die | Hemming | V6,8,10 | 1000 | |||

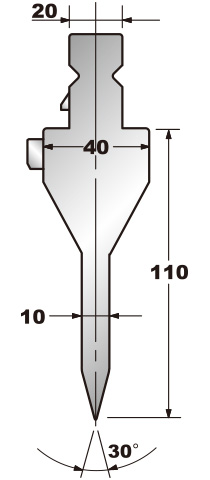

| Double Deck Hemming Punch  |
Punch | Hemming | 30° | 10 | 110 | 1000 | |

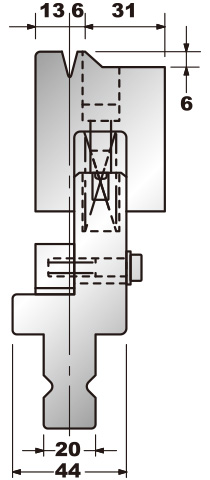

| Double Deck Hemming Die  |
Die | Hemming | V6,8 | 30° | 108,112 | 450(650) | |

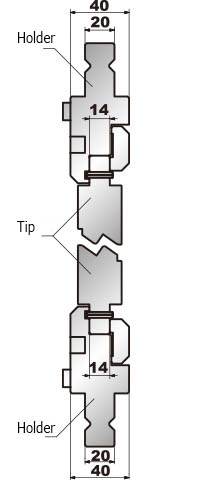

Tip Type Off-Set Tool |
Punch/Die | Off-Set Tool | |||||

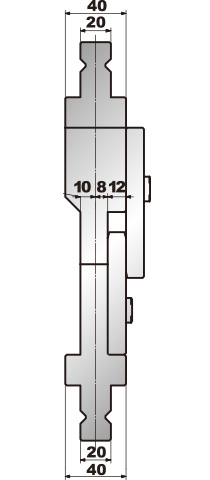

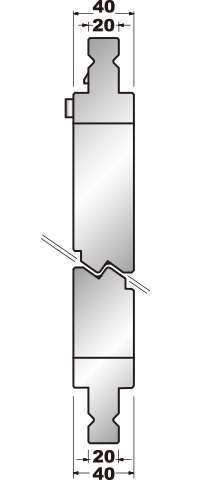

| Integral Type Off-Set Tool  t Tools |
Punch/Die | Off-Set Tool | |||||

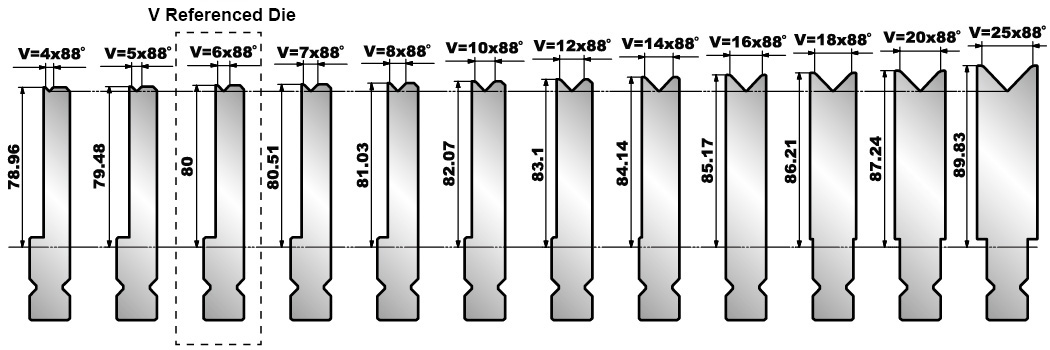

| Unified V Bottom Die (Same Shut-Height Tool)  |
Die | Unified V Bottom Die | V4～V25 | ||||
| Side Flange Limit chart for Each Punch Height  |
Others |
