Caution for AMTS

Non-SQ type (fixture pin style) is recommended because the weight of 415mm tooling is more than 12.5kg.
※1 Regulation of 12.5kg or heavier is according to EU uniform standard, this is the weight capable of lifting/lowering things with both hands in front.



・Modular Tools 12.5kg or more

Profile	Effective Height	Tool Length	Weight
MT-40 (Gooseneck)	120mm	415mm	13.8kg
MT-46 (Gooseneck)	120mm	415mm	13.3kg
MT-47 (Gooseneck)	120mm	415mm	13.5kg
High-Height Punch (Sash)	220mm	415mm	19.1kg
High-Height Punch (Straight)	220mm	415mm	13.5kg
Hemming Tooling (Punch)	-	415mm	16kg

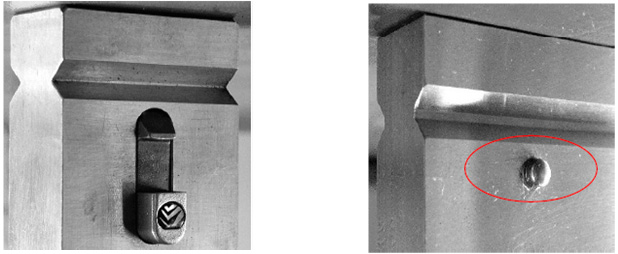

with SQ (Safety Click)	without SQ (with fixture pin)
