SGRIP,AGRIP-M,Conversion Adaptor
SK10,11,19
※ Dedicated plates is applicable for SGRIP and AGRIP.
※1 Select appropriate clamp plate by SK. SK10 (Straight-Groove Type ) or SK11 (Tapered-Groove Type)
※Dedicated plates may change depending on machines/specifications/production date.
Please be sure to check your dedicated plates before order.
| Tool Number Name/Spec. |
Tool Profile | Cat.No. | Allow.Ton. | Edge Width | HeightH | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|
| SGRIP Single ZⅡ Type (SK10) MORE |
 |
903100 | 1000kN/m | ― | 120 | 6.3 | ― |
| SGRIP Rear Clamp Plate Assy (SK10) |
 |
903300 | ― | ― | ― | 1.2 | ― |
| GRIP Dedicated Plate Type C (SK10) |
 |
903310 | ― | ― | ― | ― | |

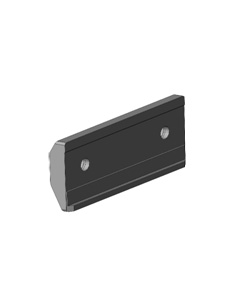

| GRIP Dedicated Plate TypeA (SK10) |
 |
903320 | ― | ― | ― | ― | |

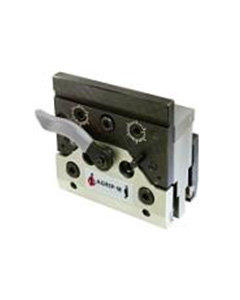

| AGRIP-M Dual ZⅡType (SK10 or SK11)*1 MORE |
 |
905200 | 1000kN/m | ― | 120 | 7.5 | ― |

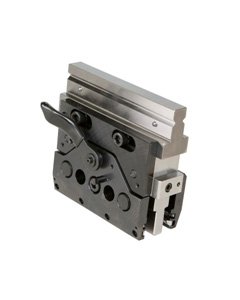

| Conversion Adaptor T-Type Z II Conversion (SK19) |
 |
Special | 1000kN/m | ― | ― | 8.0 | ― |
