ALP Punch

Tool Number Name/Spec.	Tool Profile	V Angle	Edge R	Cat.No.	Allow.Ton.	Edge Width	Weight (kg)	Size

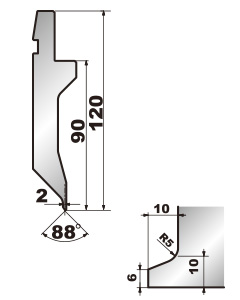

00470 ALP Punch Burring Ⅲ HRC60±2 MORE		88°	R0.2	004701	400kN/m	----	11.0	L
				004702			5.5	S
(No.00470 Sect.) HRC60±2				004781	110kN/m	----	11.0	Sect.
