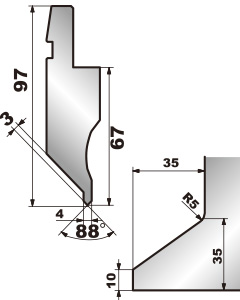

Burring Punch

Tool Number Name/Spec.	Tool Profile	V Angle	Edge R	Cat.No.	Allow.Ton.	Edge Width	Weight (kg)	Size
0048 No.1Type HRC47±2		88°	R0.2	004801	400kN/m	4mm	10.5	L
				004802			5.2	S
			R0.6	004861			10.5	L
				004862			5.2	S
1488 (No.0048Sect.) HRC47±2			R0.2	148801	200kN/m		9.3	Sect.
			R0.6	148861

※A Type Sectionalized Length (10,15,20,40,50,100(Right Ear),100(Left Ear),200,300 Total 835mm)
※L:835mm S:415mm
