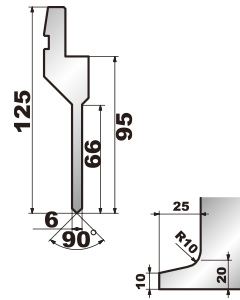

Straight Punch
SK10,11
| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|---|
| 108 HRC47±2 |
 |
90° | R0.2 | 108001 | 500kN/m | 6mm | 9.7 | L |
| 108002 | 4.8 | S | ||||||
| 106 (No.108 Sect.) HRC47±2 |
106001 | 120kN/m | 9.7 | Sect. |
※L:835mm S:415mm
