Standard Punches
SK10,11
| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|---|

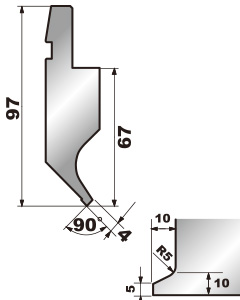

116 HRC47±2 |
 |
90° | R0.2 | 116001 | 200kN/m | 4mm | 10.6 | L |
| 116002 | 5.3 | S | ||||||
11680 (No.116Sect.)HRC47±2 |
116801 | 100kN/m | 10.0 | Sect. |
※L:835mm S:415mm
