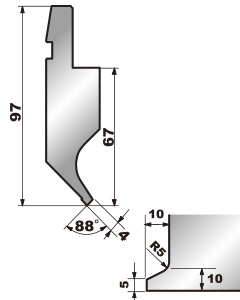

Tool Number Name/Spec.	Tool Profile	V Angle	Edge R	Cat.No.	Allow.Ton.	Edge Width	Weight (kg)	Size
117 HRC47±2		88°	R0.2	117001	200kN/m	4mm	10.6	L
				117002			5.3	S
			R0.6	117061			10.6	L
				117062			5.3	S
11780 (No.117Sect.) HRC47±2			R0.2	117801	100kN/m		10.0	Sect.
			R0.6	117861

※B Type Sectionalized Length (10,15,20,40,50,100(Right Ear),100(Left Ear),165,300 Total 800mm)
※L:835mm S:415mm
