Sash Punch
SK10,11

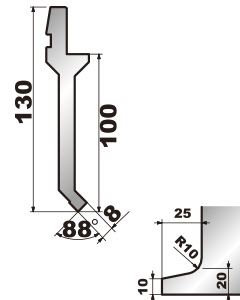

| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size |
|---|---|---|---|---|---|---|---|---|
| 202 HRC47±2 |
 |
88° | R0.2 | 202001 | 300kN/m | 8mm | 10.0 | L |
| 202002 | 5.0 | S | ||||||
| R0.6 | 202061 | 10.0 | L | |||||
| 202062 | 5.0 | S | ||||||
| 20280 (No.202Sect.) HRC47±2 |
R0.2 | 202801 | 150kN/m | 9.0 | Sect. | |||
| R0.6 | 202861 |
※L:835mm S:415mm
