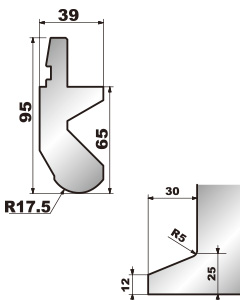

Radius Punch for Kitchen Appliances

Tool Number Name/Spec.	Tool Profile	V Angle	Edge R	Cat.No.	Allow.Ton.	Edge Width	Weight (kg)	Size
230 Radius Punch HRC25±2		----	R17.5	230001	1000kN/m	----	13.4	L
				230002			6.7	S
231 (No.230Sect.) HRC25±2		----		231001		----	13.0	Sect.
