Gooseneck Punch
SK10,11

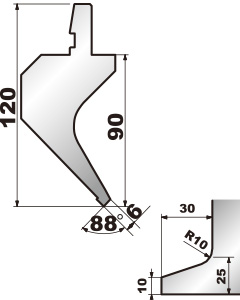

| Tooling番号 Profile/Spec | Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size | |
|---|---|---|---|---|---|---|---|---|---|
| 453 HRC47±2 |
 |
88° | R0.2 | 453021 | 500kN/m | 6mm | 18.7 | L | |
| 453022 | 9.3 | S | |||||||
| R0.6 | 453061 | 18.7 | L | ||||||
| 453062 | 9.3 | S | |||||||
| R0.8 | 453081 | 18.7 | L | End of Sales | |||||
| 453082 | 9.3 | S | |||||||
| R1.5 | 453151 | 18.7 | L | ||||||
| 453152 | 9.3 | S | |||||||
| R3.0 | 453301 | 18.7 | L | ||||||
| 453302 | 9.3 | S | |||||||
| 155 (No.453Sect.) HRC47±2 |
R0.2 | 155001 | 300kN/m | 16.7 | Sect. | ||||
| R0.6 | 155061 | ||||||||
| R0.8 | 155081 | End of Sales | |||||||
| R1.5 | 155151 | ||||||||
| R3.0 | 155301 |
※L:835mm S:415mm * Blue codes are items excluded from inventory.
