Standard Hynged Type Punch
SK10,11
| Tool Number Name/Spec. |
Tool Profile | V Angle | Edge R | Cat.No. | Allow.Ton. | Edge Width | Weight (kg) |
Size | |
|---|---|---|---|---|---|---|---|---|---|
| Hynged Type 88ﾟ Sect. Punch (No.4 Type) HRC40 |
Standard Profile Left+Right set Right 130mm,Left 130mm |
88° | R0.2 | 404021 | 150kN/m | 9 | 4.0 | Sect. | End of Sales |
| R0.6 | 404061 | ||||||||
| 90ﾟ Sect. Punch (No.16 Type) HRC40 |
90° | R0.2 | 416021 | 150kN/m | 9 | 4.0 | Sect. | ||

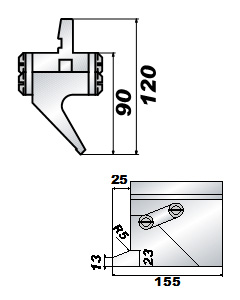

| Hynged Type 88ﾟ Sect. Punch (No.453 type) HRC40 |
Gooseneck Spec Right 155mm,Left 155mm |
88° | R0.2 | 433021 | 150kN/m | 6 | 7.0 | Sect. | |
| R0.6 | 433061 | ||||||||
| 90ﾟ Sect. Punch (No.463 Type) HRC40 |
90° | R0.2 | 443021 | 150kN/m | 6 | 7.0 | Sect. |
