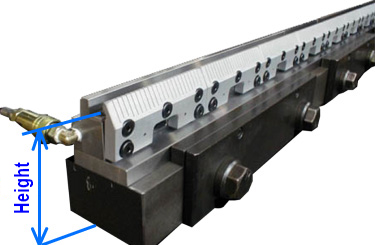

AGRIP-A/M
Clamp Plate for Amada Press Brake Machine -AMADA STANDARD GRIP-
Hydraulic 1V Die Holder
- Clamp/Unclamp is switched with one button by hydraulic system.
- Wrenchless Tool Change Work
- Slotted clamp plate secures sectionalized dies.
- Clamp plate can be detached to widen return bend area.
- Hydraulic pump can be shared when AGRIP-A is installed on the machine.
| Item | Contents |
|---|---|
| Die Lock Method | Hydraulic |
| Applicable Die | Amada 1V Dies (Width:14mm) |
| Die Holder Height | H=51.5mm (from the top of lower table) |
| Tool Clamping Force* | 6.7kN[670kgf]
(Delivery Pressure 24.5MPa[250kgf/cm2] / hour) ｝hour) |
| Operating Pressure | 24.5MPa｛250kgf/cm2｝ |
| Allowable Tonnage | 1000kN/m｛100ton/m｝ |
| Machine Model | Table Length | Die Holder Length Combination | |
|---|---|---|---|
| HDS | HDS5020NT | 2070mm | 2000mm x 1pc |
| HDS8025NT | 2600mm | 1250mm x 2pcs | |
| HDS1303NT | 3220mm | 2000mm x 1pc ＋ 1250mm x 1pc | |
| HDS1703NT | |||
| HDS2203NT | |||
| HDS2204NT | 4280mm | 2125mm x 2pcs | |
| FBDⅢ | FBDⅢ5012NT | 1200mm | 1250mm x 1pc |
| FBDⅢ8020NT | 2000mm | 2000mm x 1pc | |
| FBDⅢ1025NT | 2500mm | 1250mm x 2pcs | |
| FBDⅢ1253NT | 3000mm | 1500mm x 2pcs | |
| FMB | FMB3613NT | 1300mm | 1250mm x 1pc |
1 pc for 1.2m-2.0m lower table
2 pcs for 2.5m or more lower table
