- “FEAT” AFH Die Holder
“FEAT” AFH Die Holder

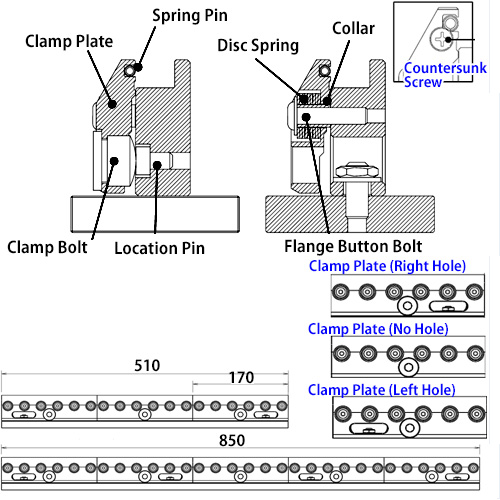

Code
| Item | Cat No. | |
|---|---|---|
| L size 850mm | SK 10 | 082501 |
| M size 510mm | SK 10 | 082502 |
Machine Layout Table
| Catalog # | Description | Content Details | Note | |
|---|---|---|---|---|
| Parts Name | Qty | |||
| 82511 | Spring Pin Set | Spring Pin | 17 | Quantity shown is required per clamp plate. |
| Countersunk Screw | 2 | |||
| 82512 | Disc Spring Set | Disc Spring | 54 | Quantity shown is required per clamp plate. |
| 82513 | Flanged Button Bolt Set | Flanged Button Bolt | 6 | Quantity shown is required per clamp plate. |
| Collar | 6 | |||
| 82514 | Clamp Bolt Set | Clamp Bolt | 1 | Quantity shown is required per clamp plate. |
| Location Pin | 1 | |||
| 82515 | Clamp Plate (Right Hole) |
Clamp Plate1 | 1 | |
| 82516 | Clamp Plate (No Hole) |
Clamp Plate2 | 1 | |
| 82517 | Clamp Plate (Left Hole) |
Clamp Plate3 | 1 | |
