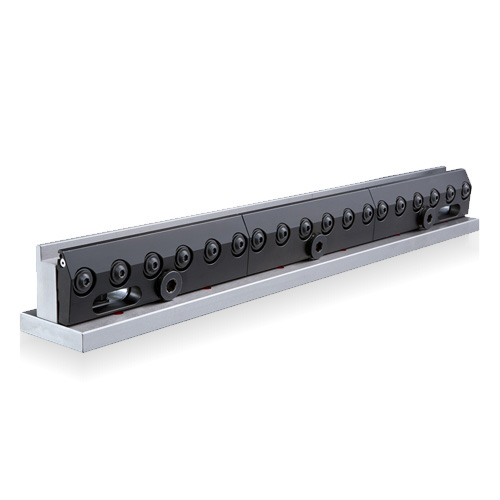

“FEAT” AFH Die Holder
- Specification
- Machine Layout Table
| Item | Specification |
|---|---|
| Holder Length | L size 850mm / M size 510mm |
| Holder Height | H=51.5mm |
| Holder Allowable Tonnage | 1000kN/m |
| Applicable Tooling | ●Amada AFH Die： Max V=40mm（Mounting width: 14mm） |
| ●Amada Light-Weight Hemming Tool Type Ⅲ: （Mounting Width: 14.2mm） |
|
| Tooling Fixture Method | Manual Operation: Tools are fixed by rotating bolts by 180 degree using Allen Key（8mm）(Tools are not available in unfixed state.) L size:5 bolts / M size: 3 bolts |
| Weight | L size 13.5kg / M size 8.0kg |
| Hardness | HRC28 |
| Centering Method | The centering work is required at only first installation. |
| Bi Compatibility | Bi-S: Available Bi-J: Not Available |
| Other | Die attaching height of FEAT is same as 1V Die Holder Reversible, so they can be used together. |
| Machine Model | Table Length (mm) | Die Holder Combination | Die Holder Length (mm) |
|---|---|---|---|
| EG-6013 | 1350 | L=1、M=1 | 1360 |
| HD-5020NT | 2090 | L=2、M=1 | 2210 |
| HG-5020 | 2150 | ||
| HG-8025 | 2600 | L=3 | 2550 |
| HD-8025NT | 2570 | ||
| HD-1303/HG-1303LNT | 3110 | L=3、M=1 | 3060 |
| HD-1703/HG-1703LNT | |||
| HG-2203 | |||
| HG-1704 | 4300 | L=5 | 4250 |
| HG-2204 |
