HG/EG/HDS/HD Recommendation
Return Bend Graph

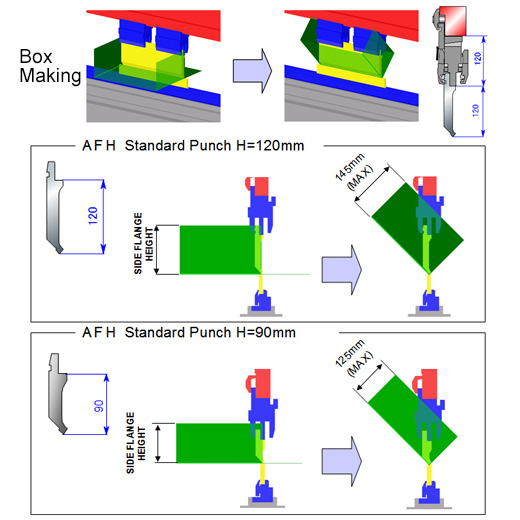

Enlargement of Working Area ... Side Flange
Enlargement of Working Area ... Short Flange
In the case of 70 series 1V die, the hang-down portion interferes with the die at the second process of short flange bending. AFH die has back relief, and this enables shorter flange bending.
| 70 series 1V Die | ＡＦＨ Die | ||
| Tool Profile | Magnified | Tool Profile | Magnified |
V=6
|
 |
V=6
|
 |
