How to Read Tonnage Chart

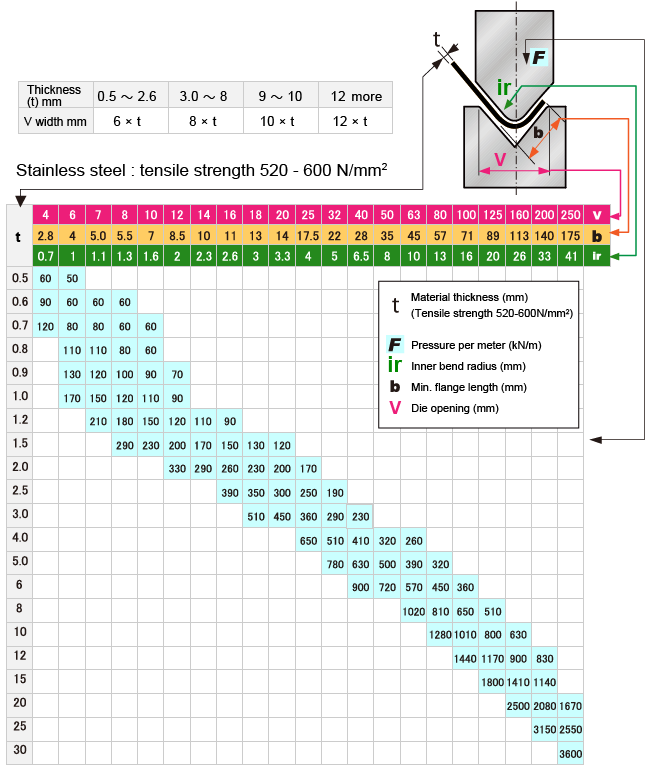

The chart can be useful when the material thickness and iR (product inner radius) are known.

1. Required tonnage to bend 1mm long material ( F )
2. Die's V width ( V-opening ) mm ( V )
3. Minimum flange length to bend mm (b)
