3U Dies

This FEL data is not for V-bending. ( Value "D" can not be calculated.) Therefore, please download the data after reading the following notice carefully.
>Use "Direct Data" mode.
("3D Data"/"Shape Data"/"Angle Data" are Not Available.)

*Direct Data: Input values "L" and "D" on "Run Display" or "Prog Display" through from "Bend Process Display/Tool Select Display"

Direct-input means to input L and D

Not possible to calculate D value (Except V bend type tool)
Radius Bend 3U Die Offset Tool Hemming Wing Bend
Radius Bend 3U Die Offset Tool Hemming ウイングベンド

Download

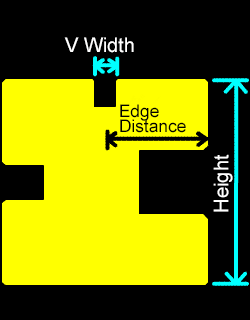

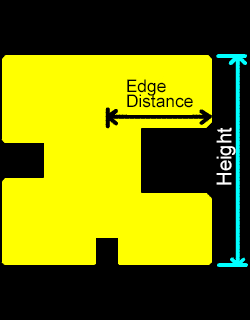

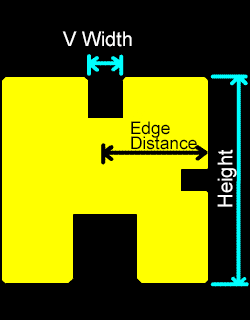

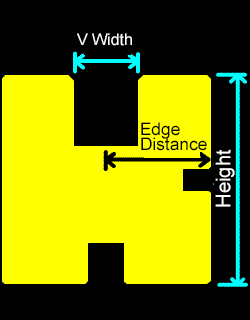

  FELNo. Product V Width Edge Distance Height Image
1 012006 3U Dies 6 30 60
2 012010 10 30 60
3 012018 18 30 60
4 01200 0 30 60
