AT Retainers

This FEL data is not for V-bending. ( Value "D" can not be calculated.) Therefore, please download the data after reading the following notice carefully.
>Use "Direct Data" mode.
("3D Data"/"Shape Data"/"Angle Data" are Not Available.)

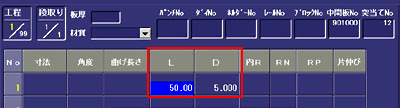

*Direct Data: Input values "L" and "D" on "Run Display" or "Prog Display" through from "Bend Process Display/Tool Select Display"

Direct-input means to input L and D

Not possible to calculate D value (Except V bend type tool)
Radius Bend Dies AT Retainers Offset Tool Hemming Wing Bend
Radius Bend AT Retainer Offset Tool Hemming ウイングベンド

Download

The following data is contained.

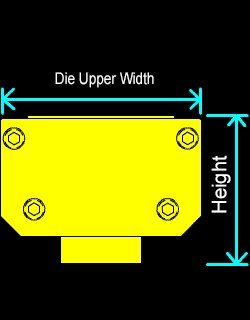

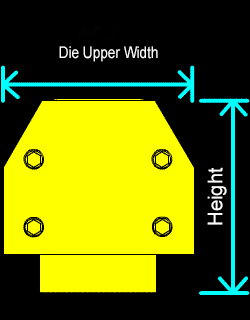

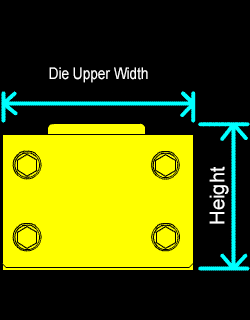

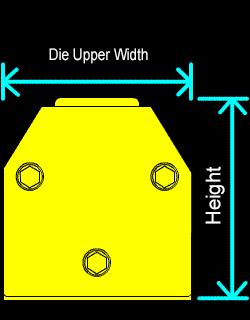

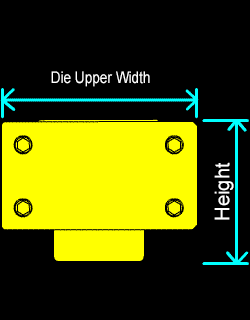

  FELNo. Product Die Upper Width Height Notes Image
1 06001 No. 60(1) 60 62 AT Retainer 25X25
2 06002 No. 60(2) 60 45 AT Retainer 30X25
3 06003 No. 60(3) 100 102 AT Retainer 50X50
4 06004 No. 60(4) 120 85 AT Retainer 80X30
5 06005 No. 60(5) 150 110 AT Retainer 110X45
