Hemming (Flattening) Punches
This FEL data is not for V-bending. ( Value "D" can not be calculated.)
Therefore, please download the data after reading the following notice carefully.
>Use "Direct Data" mode. ("3D Data"/"Shape Data"/"Angle Data" are Not Available.)
*Direct Data: Input values "L" and "D" on "Run Display" or "Prog Display" through from "Bend Process Display/Tool Select Display"
| Not possible to calculate D value (Except V bend type tool) | ||||
| Radius Bend | 3U Die | Offset Tool | Hemming | Wing Bend |
 |
 |
 |
 |
 |
| FELNo. | Product | Angle | Radius | Image |

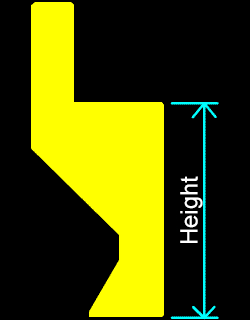

| 22000 | Hemming (Flattening) H=65 |
 |
