G Series G10/20/30/40 Punches

G Series G10/20/30/40 Punches

G10 Punches
G20 Punches
G30 Punches
G40 Punches

G10 Punches

	FELNo.	Product	Angle	Radius	Image

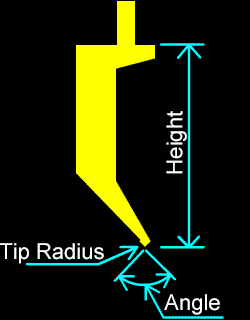

1	101482	G1014 H=140	88	0.2
2	101486		88	0.6
3	101488		88	0.8
4	101485		88	1.5
5	101483		88	3.0
6	101492		90	0.2

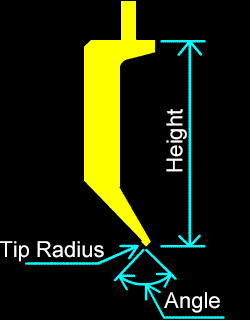

7	101682	G1016 H=160	88	0.2
8	101686		88	0.6
9	101688		88	0.8
10	101685		88	1.5
11	101683		88	3.0
12	101692		90	0.2

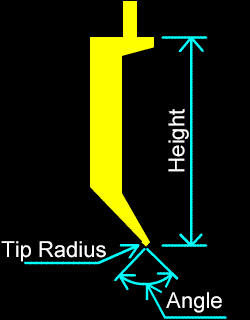

13	101882	G1018 H=180	88	0.2
14	101886		88	0.6
15	101888		88	0.8
16	101885		88	1.5
17	101883		88	3.0
18	101892		90	0.2

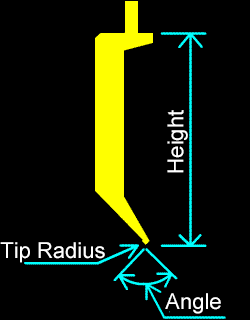

19	102082	G1020 H=200	88	0.2
20	102086		88	0.6
21	102088		88	0.8
22	102085		88	1.5
23	102083		88	3.0
24	102092		90	0.2

G20 Punches

	FELNo.	Product	Angle	Radius	Image

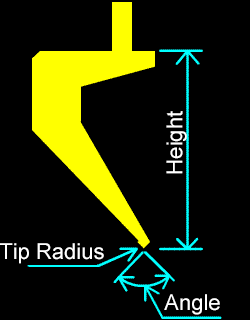

1	201282	G2012 H=120	88	0.2
2	201286		88	0.6
3	201288		88	0.8
4	201285		88	1.5
5	201283		88	3.0
6	201292		90	0.2

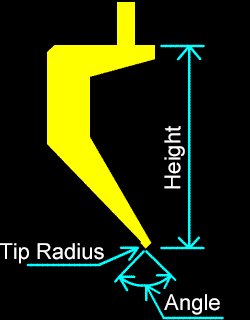

7	201482	G2014 H=140	88	0.2
8	201486		88	0.6
9	201488		88	0.8
10	201485		88	1.5
11	201483		88	3.0
12	201492		90	0.2

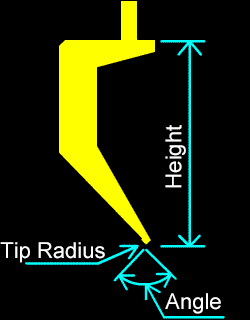

13	201682	G2016 H=160	88	0.2
14	201686		88	0.6
15	201688		88	0.8
16	201685		88	1.5
17	201683		88	3.0
18	201692		90	0.2

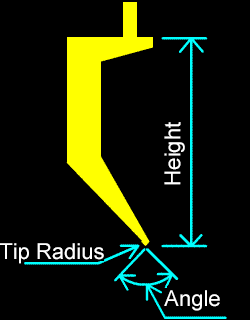

19	201882	G2018 H=180	88	0.2
20	201886		88	0.6
21	201888		88	0.8
22	201885		88	1.5
23	201883		88	3.0
24	201892		90	0.2

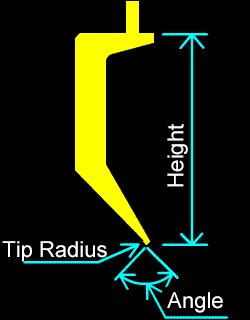

25	202082	G2020 H=200	88	0.2
26	202086		88	0.6
27	202088		88	0.8
28	202085		88	1.5
29	202083		88	3.0
30	202092		90	0.2

G30 Punches

	FELNo.	Product	Angle	Radius	Image

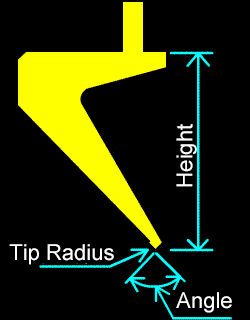

1	301282	G3012 H=120	88	0.2
2	301286		88	0.6
3	301288		88	0.8
4	301285		88	1.5
5	301283		88	3.0
6	301292		90	0.2

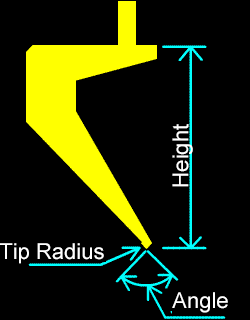

7	301482	G3014 H=140	88	0.2
8	301486		88	0.6
9	301488		88	0.8
10	301485		88	1.5
11	301483		88	3.0
12	301492		90	0.2

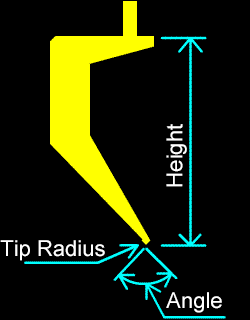

13	301682	G3016 H=160	88	0.2
14	301686		88	0.6
15	301688		88	0.8
16	301685		88	1.5
17	301683		88	3.0
18	301692		90	0.2
19	301882	G3018 H=180	88	0.2
20	301886		88	0.6
21	301888		88	0.8
22	301885		88	1.5
23	301883		88	3.0
24	301892		90	0.2

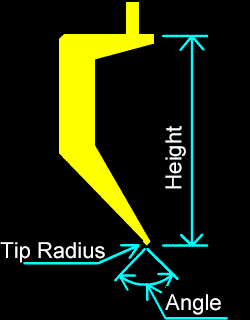

25	302082	G3020 H=200	88	0.2
26	302086		88	0.6
27	302088		88	0.8
28	302085		88	1.5
29	302083		88	3.0
30	302092		90	0.2

G40 Punches

	FELNo.	Product	Angle	Radius	Image

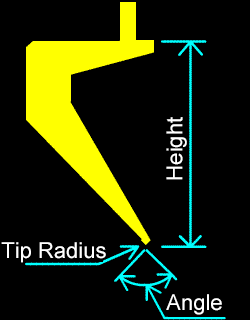

1	401682	G4016 H=160	88	0.2
2	401686		88	0.6
3	401688		88	0.8
4	401685		88	1.5
5	401683		88	3.0
6	401692		90	0.2

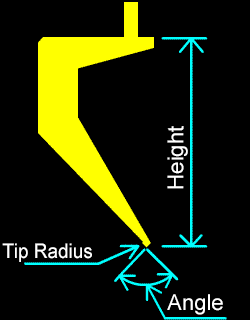

7	401882	G4018 H=180	88	0.2
8	401886		88	0.6
9	401888		88	0.8
10	401885		88	1.5
11	401883		88	3.0
12	401892		90	0.2

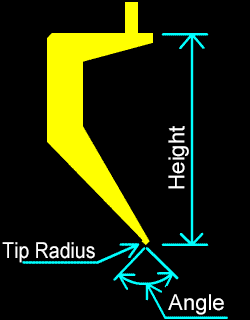

13	402082	G4020 H=200	88	0.2
14	402086		88	0.6
15	402088		88	0.8
16	402085		88	1.5
17	402083		88	3.0
18	402092		90	0.2
