Sash Punches

Download

  FELNo. Product Angle Radius CATNo. Image

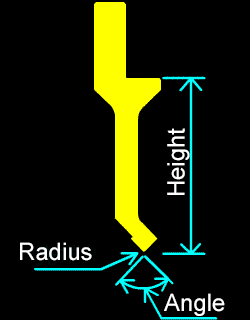

1 20000

Sash
H=70
88 0.2 20080
2 20006 0.6 20086
3 20080 0.2 20000
4 20086 0.6 20006
5 20100 90 0.2 20180
6 60106 0.6 60186
7 20180 0.2 20100
8 60186 0.6 60106
9 20406 84 0.6 20486
10 20486 84 0.6 20406

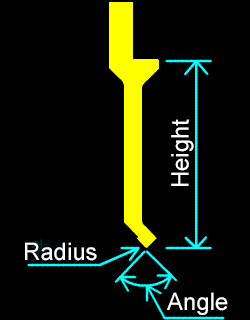

11 20200 High-height
Sash
H=100
88 0.2 20280
12 20206 0.6 20286
13 20280 0.2 20200
14 20286 0.6 20206
15 20300 90 0.2 20380
16 80306 0.6 80386
17 20380 0.2 20300
18 80386 0.6 80306
19 20506 84 0.6 20586
20 20586 84 0.6 20506
