Hemming Dies for Robot
This FEL data is not for V-bending. ( Value "D" can not be calculated.)
Therefore, please download the data after reading the following notice carefully.
>Use "Direct Data" mode. ("3D Data"/"Shape Data"/"Angle Data" are Not Available.)
*Direct Data: Input values "L" and "D" on "Run Display" or "Prog Display" through from "Bend Process Display/Tool Select Display"
| Not possible to calculate D value (Except V bend type tool) | ||||
| Radius Bend | 3U Die | Offset Tool | Hemming | Wing Bend |
 |
 |
 |
 |
 |

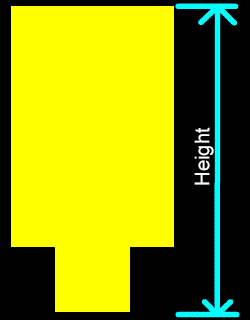

| FELNo. | Product | Angle | V Width | SH. R | Die Edge Distance | Height | CATNo. | Image |
| 25891 | Hemming Dies for Robot | 15 | 57.93 | AT0601/ ATB602 |  |
|||
| 25892 | 15 | 56.89 | AT0601 ATB602 |
|||||
| 25893 | 15 | 55.86 | xAT0601 ATB602 |
