AFH Punches (H=90 Angle 86° 90° 30°)
| FELNo. | Product | Angle | Radius | CATNo. | Image | |

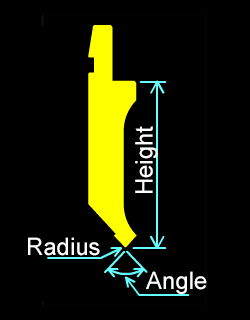

| 1 | 994521 |
Standard H=90 |
86 | 0.2 | A94521 A94722 A94821 A94921 |
 |
| 994561 | 86 | 0.6 | A94561 A94762 A94861 A94961 |
|||
| 996521 | 90 | 0.2 | A96521 A96722 A96821 A96921 |
|||

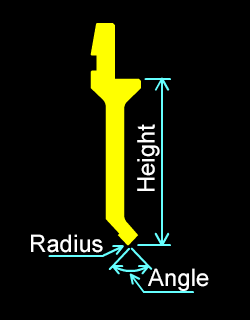

| 2 | 992521 |
Sash H=90 |
86 | 0.2 | A92521 A92722 A92821 A92921 |
 |
| 992561 | 86 | 0.6 | A92561 A92762 A92861 A92961 |
|||
| 991521 | 90 | 0.2 | A91521 A91722 A91821 A91921 |
|||

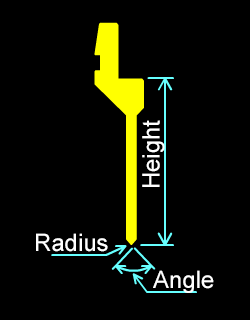

| 3 | 999560 |
Sword H=90 |
86 | 0.2 | A99521 A99722 A99821 A99921 |
 |
| 999561 | 86 | 0.6 | A99561 A99762 A99861 A99961 |
|||
| 998521 | 90 | 0.2 | A98521 A98722 A98821 A98921 |
|||

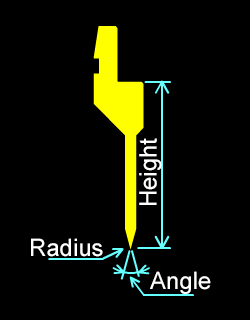

| 4 | 990521 |
Acute H=90 |
30 | 0.2 | Ａ90521 Ａ90722 Ａ90821 Ａ90921 |
 |
| 990561 | 30 | 0.6 | Ａ90561 Ａ90762 Ａ90861 Ａ90961 |
|||

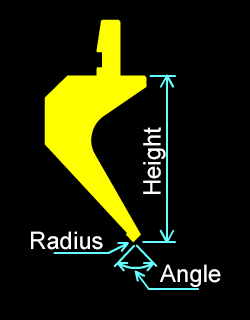

| 5 | 993521 |
Gooseneck H=90 |
86 | 0.2 | A93521 A93722 A93821 A93921 |
 |
| 993561 | 86 | 0.6 | A93561 A93762 A93861 A93961 |
|||
| 995521 | 90 | 0.2 | A95521 A95722 A95821 A95921 |
|||

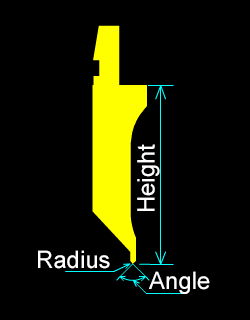

| 6 | 995021 | Burring No.1 H=90 |
86 | 0.2 |  |
|
| 995061 | 86 | 0.6 | ||||
| 997021 | 90 | 0.2 | ||||

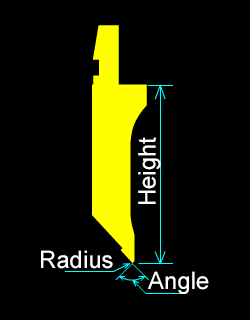

| 7 | 995022 | Burring No.2 H=90 |
86 | 0.2 |  |
|
| 995062 | 86 | 0.6 | ||||
| 997022 | 90 | 0.2 |
