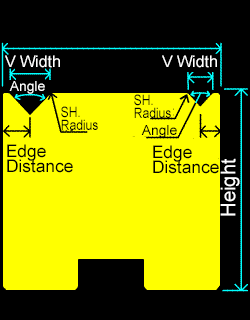

  FELNo. Product Angle V Width SH. R Edge Distance Height CATNo. Image
1 30140 Sectionalized
2V Dies		 90 4 0.4 3.5 46 30148
7 0.4 5
2 30146 88 4 0.4 3.5 45.5 30147
7 0.4 5
3 30147 88 4 0.4 3.5 45.5 30146
7 0.4 5
4 30148 90 4 0.4 3.5 46 30140
7 0.4 5
5 30740 90 5 0.4 4 46 30748
9 0.6 6
6 30746 88 5 0.4 4 45.5 30747
9 0.6 6
7 30747 88 5 0.4 4 45.5 30746
9 0.6 6
8 30748 90 5 0.4 4 46 30740
9 0.6 6
9 30240 90 6 0.4 4.5 46 30248
10 0.6 6.5
10 30246 88 6 0.4 4.5 45.5 30247
10 0.6 6.5
11 30247 88 6 0.4 4.5 45.5 30246
10 0.6 6.5
12 30248 90 6 0.4 4.5 46 30240
10 0.6 6.5
13 30340 90 8 0.5 5.5 46 30348
12 0.8 7.5
14 30346 88 8 0.5 5.5 45.5 30347
12 0.8 7.5
15 30347 88 8 0.5 5.5 45.5 30346
12 0.8 7.5
16 30348 90 8 0.5 5.5 46 30340
12 0.8 7.5
17 30440 88 14 0.5 8.5 46 30448
18 0.5 10.5
18 30448 88 14 0.5 8.5 46

30440
18 0.5 10.5
19 30449 90 14 0.5 8.5 46
18 0.5 10.5
20 30540 88 12 0.5 7.5 46 30548
20 0.5 12
21 30548 88 12 0.5 7.5 46 30540
20 0.5 12
22 30640 88 16 0.8 9.5 46 30648
25 0.8 14.5
23 30648 88 16 0.8 9.5 46 30640
25 0.8 14.5
