Burring Punches

Download

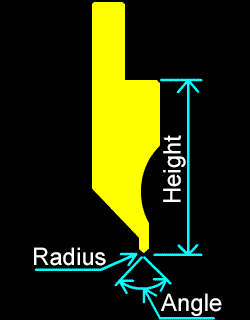

  FELNo. Product Angle Radius CATNo. Image
1 00480 Burring
No. 1
H=67		 88 0.2 14880
2 00486 0.6 14886
3 14880 0.2 00480
4 14886 0.6 00486
5 01680 90 0.2 14780
6 61680 0.6 64780
7 14780 0.2 01680
8 64780 0.6 61680
9 00490 Burring
No. 2
H=67		 88 0.2 14890
10 00496 0.6 14896
11 14890 0.2 00490
12 14896 0.6 00496
13 01690 90 0.2 14790
14 61690 0.6 64790
15 14790 0.2 01690
16 64790 0.6 61690
