Standard Punches for Robot

The following data is contained.

	FELNo.	Product	Angle	Radius	Image

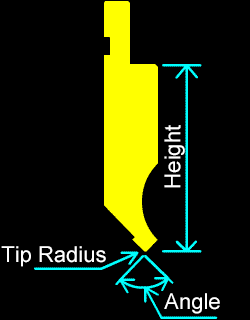

1	15779	Standard No.4 H=90	90	0.2
2	15729		88	0.6
3	04029		88	0.2

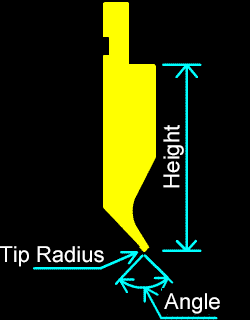

4	15789	Standard H=90	90	0.2
5	15739		88	0.6
6	11729		88	0.2

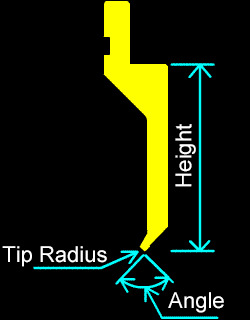

7	51200	Gooseneck H=90	88	0.6
8	51100	Gooseneck H=90	88	0.2
9	51115	Gooseneck Edge Width 2.16mm H=90	90	0.2

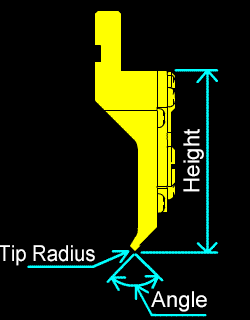

10	51300	Hinged Punches H=90	88	0.6

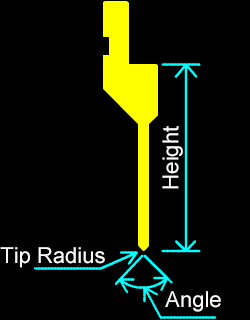

11	15719	Sword H=90	88	0.6
12	10919		88	0.2
13	15769		90	0.2

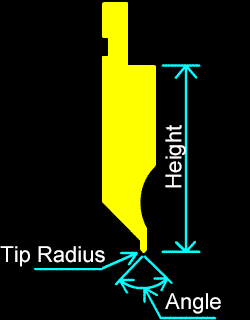

14	15799	Burring No.1 H=90	90	0.2
15	15749		88	0.6
16	04829		88	0.2

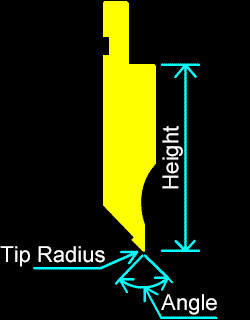

17	16929	Burring No.2 H=90	90	0.2
18	04929		88	0.2
19	04969		88	0.6

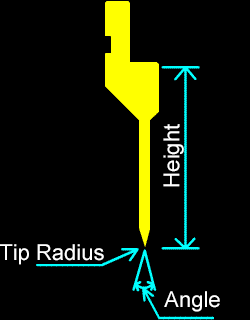

20	15809	High-height Sword H=93	30	0.5
