Gooseneck Punches 2

Download

  FELNo. Product Angle Radius CATNo. Image

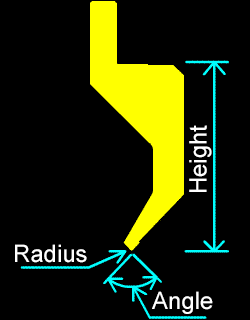

1 51402 Gooseneck
H=90		 88 0.2 51502
2 51406 0.6 51506
3 51406 0.8 51508
4 51415 1.5 51515
5 51430 3.0 51530
6 51502 0.2 51402
7 51506 0.6 51406
8 51508 0.8 51408
9 51515 1.5 51415
10 51530 3.0 51430
11 54402 90 0.2 54502
12 54406 0.6 54506
13 54408 0.8 54508
14 54415 1.5 54515
15 54430 3.0 54530
16 54502 0.2 54402
17 54506 0.6 54406
18 54508 0.8 54408
19 54515 1.5 54415
20 54530 3.0 54430

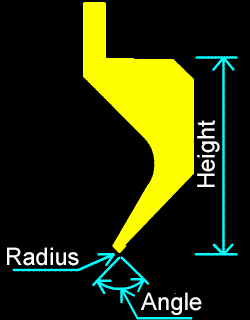

21 51602 Gooseneck
H=105		 88 0.2 51702
22 51606 0.6 51706
23 51608 0.8 51708
24 51615 1.5 51715
25 51630 3.0 51730
26 51702 0.2 51602
27 51706 0.6 51606
28 51708 0.8 51608
29 51715 1.5 51615
30 51730 3.0 51630
31 54602 90 0.2 54702
32 54606 0.6 54706
33 54608 0.8 54708
34 54615 1.5 54715
35 54630 3.0 54730
36 54702 0.2 54602
37 54706 0.6 54606
38 54708 0.8 54608
39 54715 1.5 54615
40 54730 3.0 54630
